Bearing Inspection
WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
Inspection

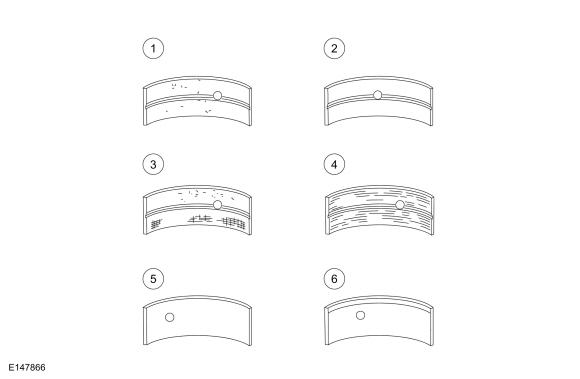

- 1.
- 1.
Cratering - fatigue failure
- 2.
Spot glazing - incorrect seating
- 3.
Scratching - dirty engine oil
- 4.
Base exposed - poor lubrication
- 5.
Both edges worn - journal damaged
- 6.
One edge worn - journal tapered or bearing not seated
 Courtesy of FORD MOTOR COMPANY
|
