Movement Symbols: Notes

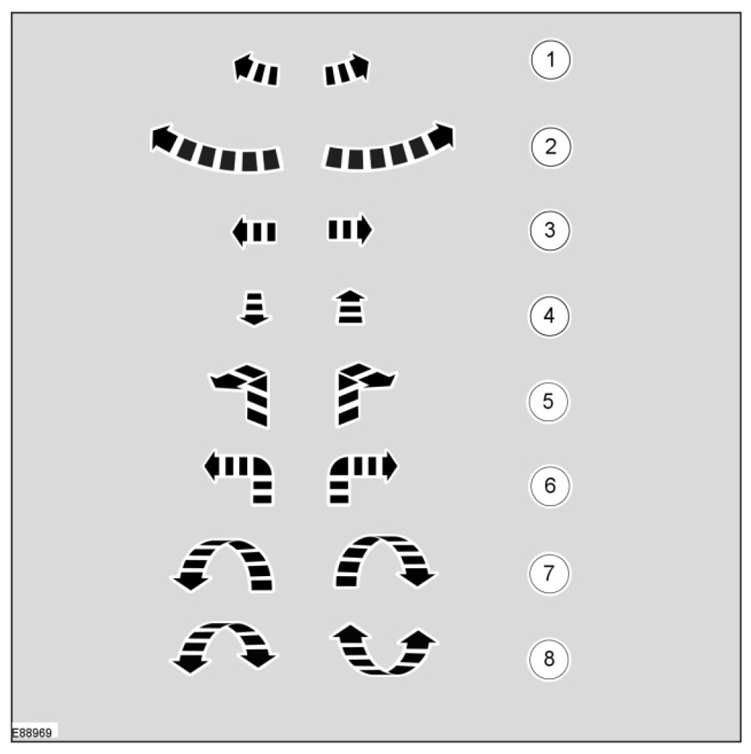

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements.

Item	Description
1	Minor component movement clockwise/counterclockwise
2	Major component movement clockwise/counterclockwise
3	Component movement to the left/right/up/down
4	Component movement towards/away
5	3 dimensional component movement
6	2 dimensional component movement
7	3 dimensional component rotation
8	3 dimensional component cycling
