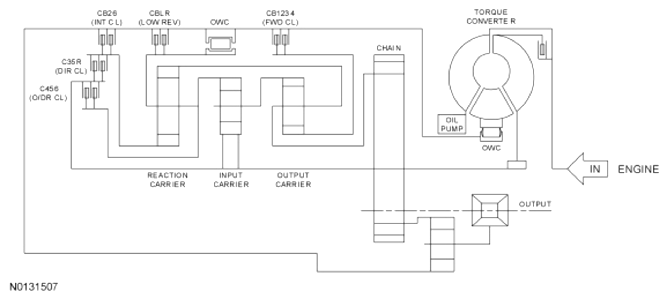

Home › Ford › 2013 › Escape Titanium, AWD › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transaxle - 6F35 › Description And Operation › Mechanical System › System Operation › System Diagram
