Main Control Valve Body: Installation

  1. New separator plate.
    • Tighten to 10 Nm (89 lb-in).
      G08411685
    • Tighten to 10 Nm (89 lb-in).
      G08411686
  3. Align the new separator plate on the stud and the guide pin.
    G08411687

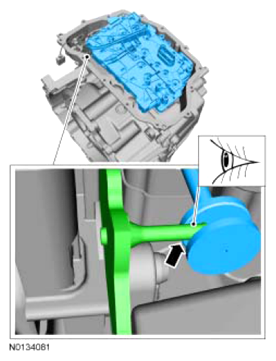

  4. NOTE: Be sure that the manual pin (part of the TR sensor) is correctly installed in the manual valve.
    G08411688
  5. Nut hand-tight.
    G08411689
  6. Short bolts hand-tight.
    G08411690
  7. Long bolts hand-tight.
    G08411691
  8. Tighten in a crisscross pattern.
    • Tighten to 10 Nm (89 lb-in).
      G08411692
  9. NOTE: Be sure the main control-to-cover seal is installed with the holes facing up.
    G08411693
  10. G08030932
  11. G08030931
  12. Install the main control cover. Refer to MAIN CONTROL COVER .
  13. NOTE: The solenoid body strategy data file and solenoid body identification must be updated anytime a new solenoid body is installed. A new solenoid body service tag must be installed over the current solenoid body service tag on top of the transmission case.

    Refer to SOLENOID BODY STRATEGY DOWNLOAD .
