Transmission Case Bushing: Installation

  1. Special tool(s): Installer, Bushing 307-664, Handle 205-153 (T80T-4000-W).
    G08614587
  2. Clean the specified component with the specified material.

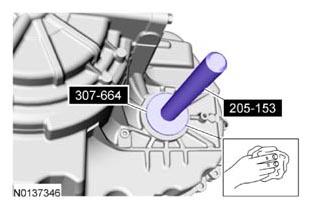

    Special tool(s): Installer, Bushing 307-664, Handle 205-153 (T80T-4000-W).

    G08614588
    • Tighten to 12 Nm (106 lb-in).
      G08030924
  4. G08617127
  5. Install a new LH halfshaft seal. Refer to HALFSHAFT SEAL - LH .
