Front Door Alignment

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

Check

1.

Check body to front door dimensions. Refer to: Body and Frame .

Adjustment

Up/Down and Fore/Aft

1.

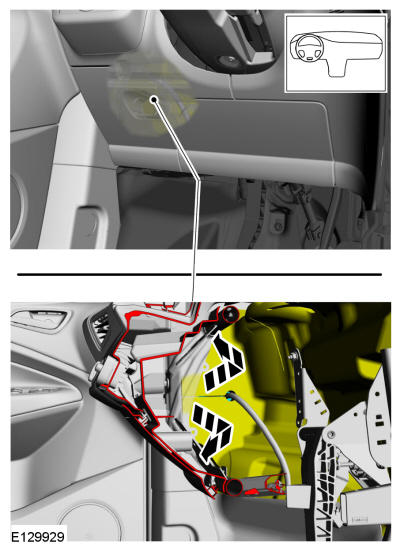

Refer to: Driver Knee Airbag .

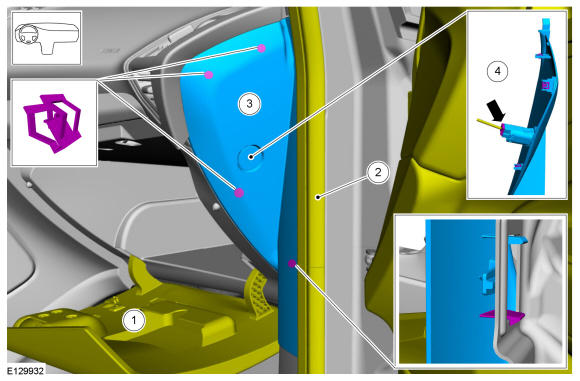

Courtesy of FORD MOTOR COMPANY

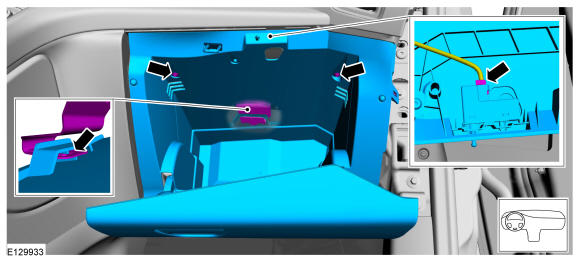

Courtesy of FORD MOTOR COMPANY

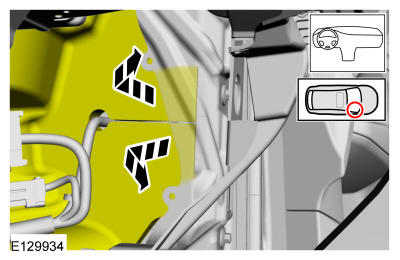

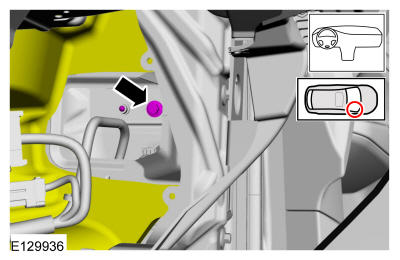

4.

Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

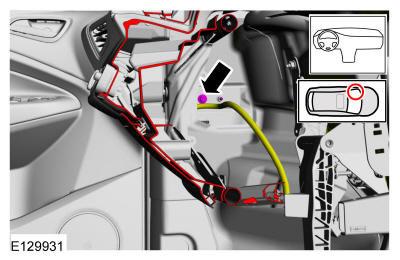

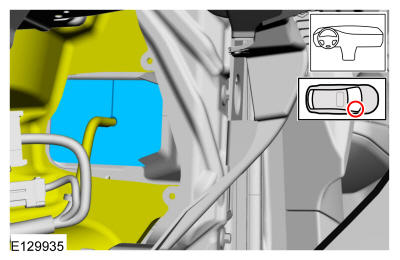

5.
- 4.

  If equipped.

Courtesy of FORD MOTOR COMPANY

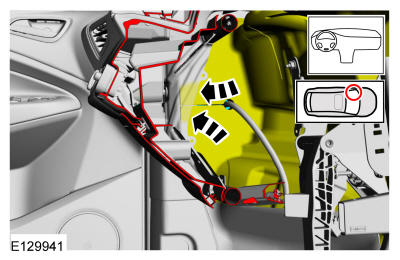

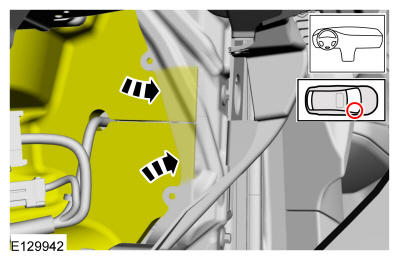

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

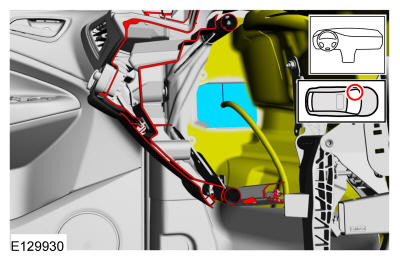

Courtesy of FORD MOTOR COMPANY

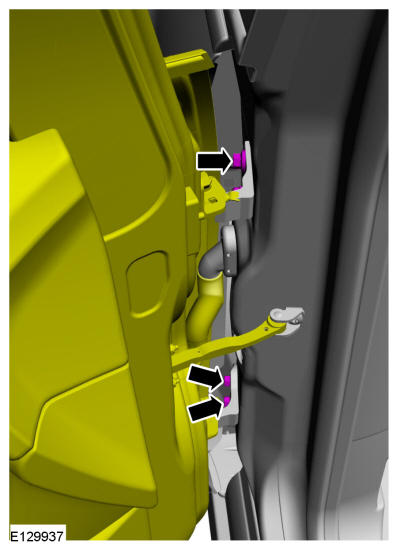

9.

Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

10.

Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

11.

Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

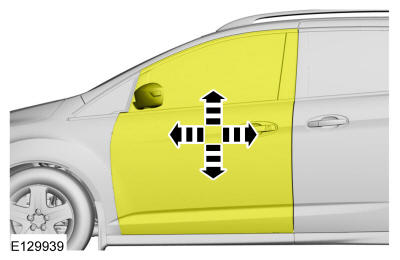

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

14.

Torque
: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

15.

Torque
: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

16.

Torque
: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

19.

Refer to: Driver Knee Airbag .

20.

Torque
: 26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

24.
- 1.

  If equipped.

Courtesy of FORD MOTOR COMPANY

25.

Check body to front door dimensions. Refer to: Body and Frame .

In/Out

26.

Check body to front door dimensions. Refer to: Body and Frame .

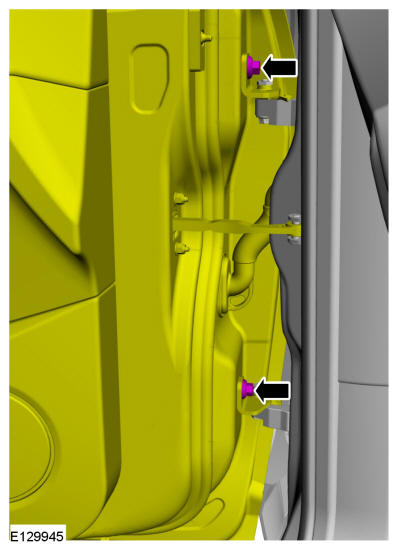

27.

Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

28.

Loosen: 2 turn(s)

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

Courtesy of FORD MOTOR COMPANY

31.

Torque
: 35 lb.ft (47.5 Nm)

Courtesy of FORD MOTOR COMPANY

32.

Torque
: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

33.

Check body to front door dimensions. Refer to: Body and Frame .
