Hood Alignment

WARNING: This page is about a different car, the 2015 Ford C-Max. However, it is still accessible from the selected car via links, so may be relevant.

Adjustment

Right/Left and Fore/Aft

1.

WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in GENERAL INFORMATION . Failure to follow this instruction may result in serious personal injury.

Refer to: Health and Safety Precautions .

2.

Check body to hood dimensions. Refer to: Body and Frame .

3.

Loosen: 2 turn(s)

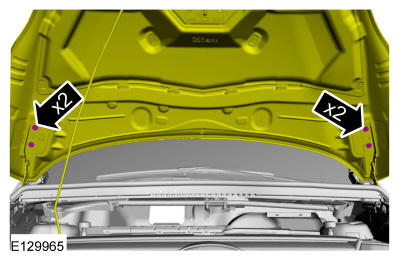

GFD14014

Courtesy of FORD MOTOR COMPANY

4.

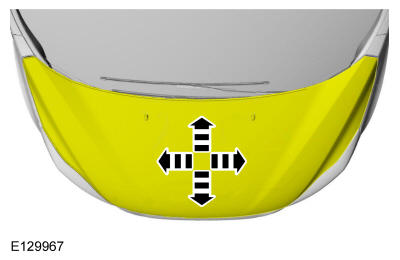

GFD14015

Courtesy of FORD MOTOR COMPANY

5.

Torque
: 93 lb.in (10.5 Nm)

GFD14014

Courtesy of FORD MOTOR COMPANY

6.

Check body to hood dimensions. Refer to: Body and Frame .

Up/Down

7.

Check body to hood dimensions. Refer to: Body and Frame .

8.

On both sides. Loosen: 2 turn(s)

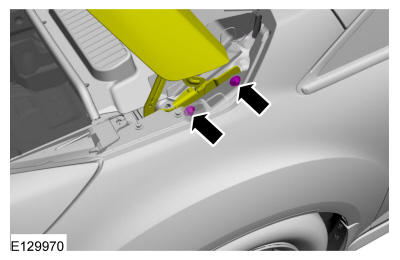

GFD14016

Courtesy of FORD MOTOR COMPANY

9.

GFD14017

Courtesy of FORD MOTOR COMPANY

10.

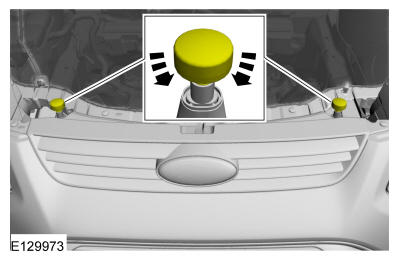

GFD14018

Courtesy of FORD MOTOR COMPANY

11.

On both sides.
Torque

: 18 lb.ft (25 Nm)

GFD14016

Courtesy of FORD MOTOR COMPANY

12.

Check body to hood dimensions. Refer to: Body and Frame .
