Rear Door Module (RDM): Removal

WARNING: This page is about a different car, the 2015 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.

  1. 1.

    Remove the rear door trim panel. Refer to: Front Door Trim Panel .

  1. 2.

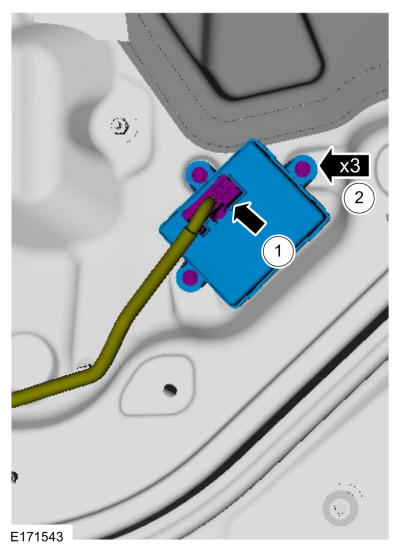

    • Disconnect the electrical connector.
    • Remove the retainers and the RDM.
GFD51006Courtesy of FORD MOTOR COMPANY
