Tilt/Telescopic Motors
›
Exploded View
Exploded View

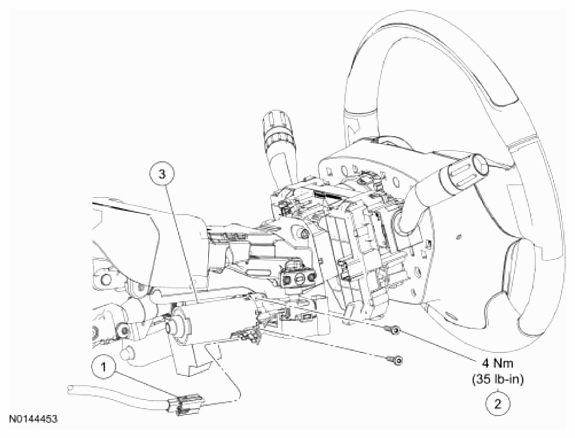

Fig 1: Exploded View Of Tilt/Telescopic Motors With Torque Specifications
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
-
Steering column tilt motor electrical connector (part of 14401)
2
W790120
Steering column tilt motor screws (2 required)
3
3D538
Steering column tilt motor
