OEM Ground Distribution: Grounds: G200

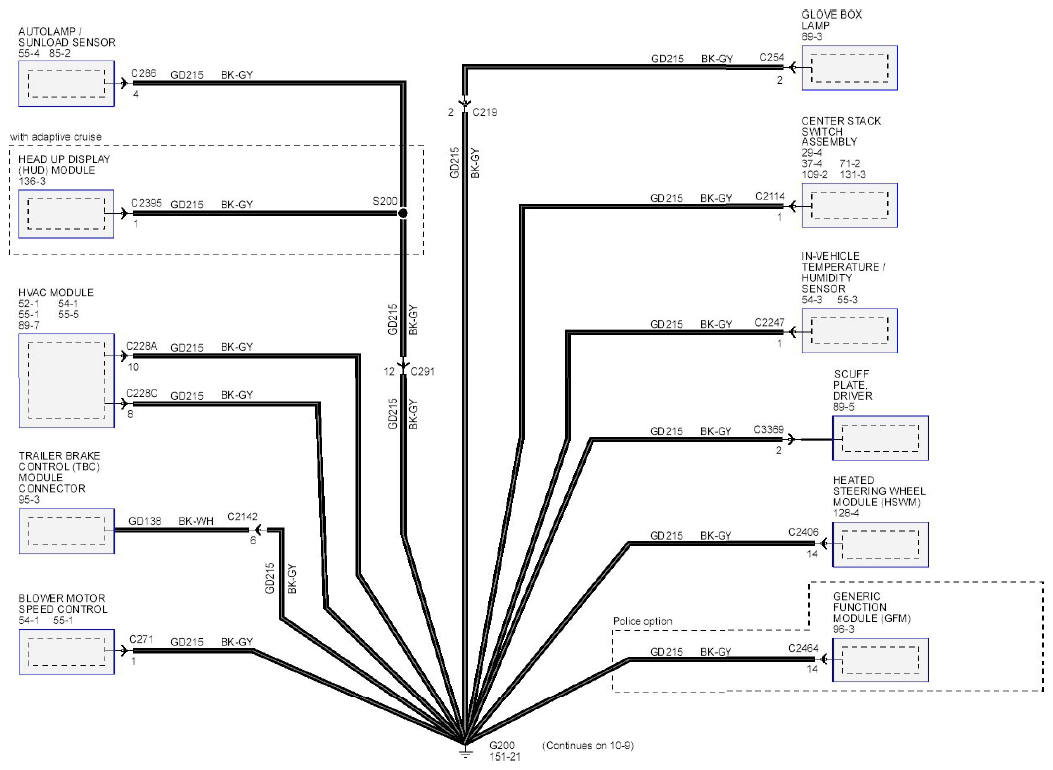

Fig 1: Grounds System (G200) Wiring Diagram (1 Of 2)
G08748280Courtesy of FORD MOTOR CO.

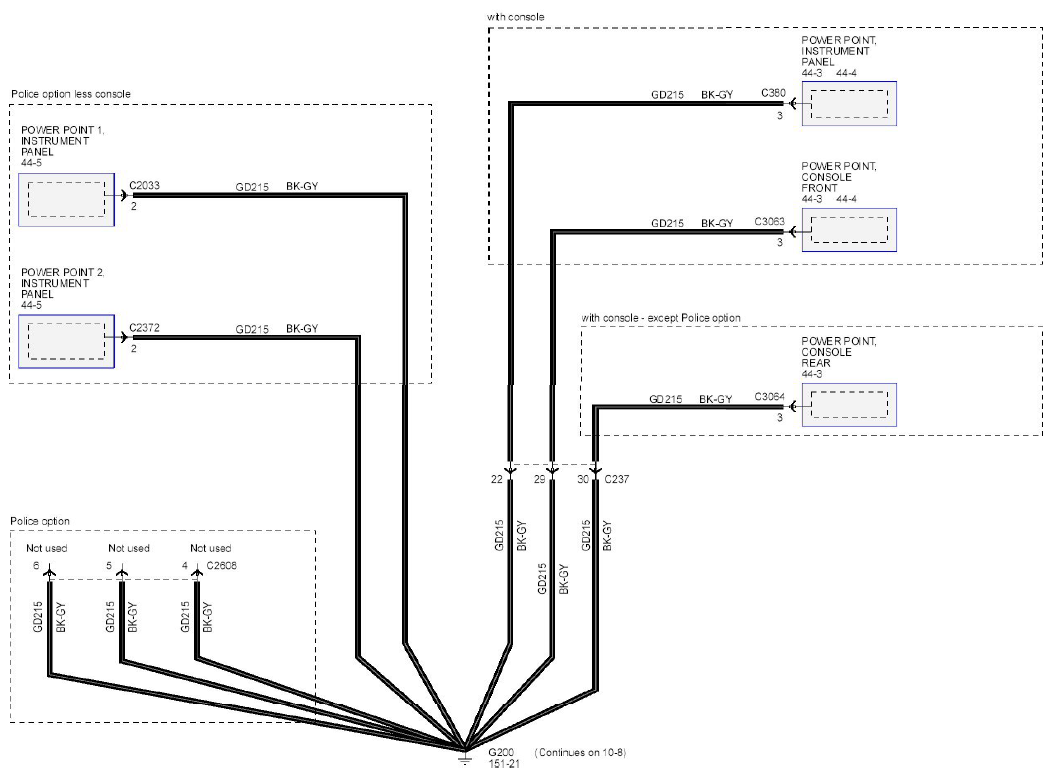

Fig 2: Grounds System (G200) Wiring Diagram (2 Of 2)
G08748281Courtesy of FORD MOTOR CO.
