OEM Ground Distribution: Grounds: G300

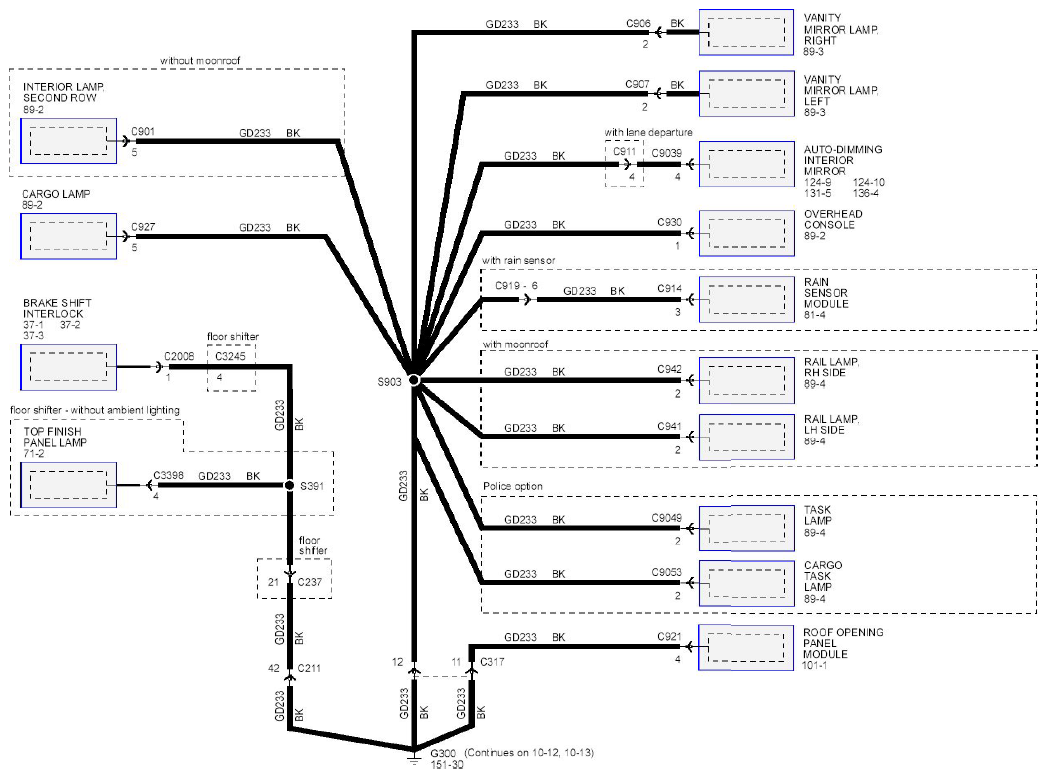

Fig 1: Grounds System (G300) Wiring Diagram (1 Of 3)

Courtesy of FORD MOTOR CO.

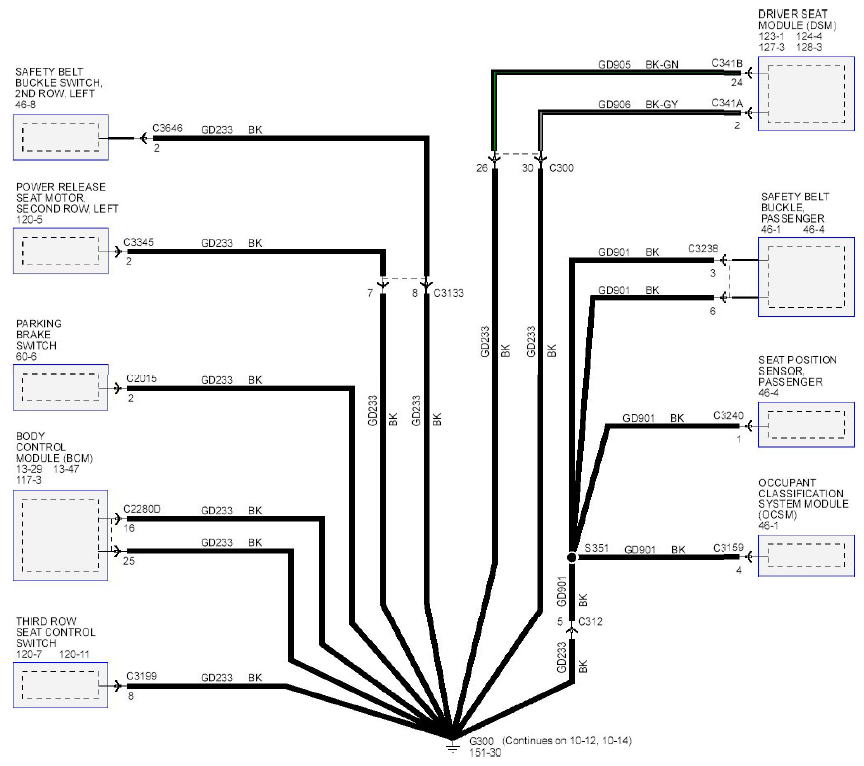

Fig 2: Grounds System (G300) Wiring Diagram (2 Of 3)

Courtesy of FORD MOTOR CO.

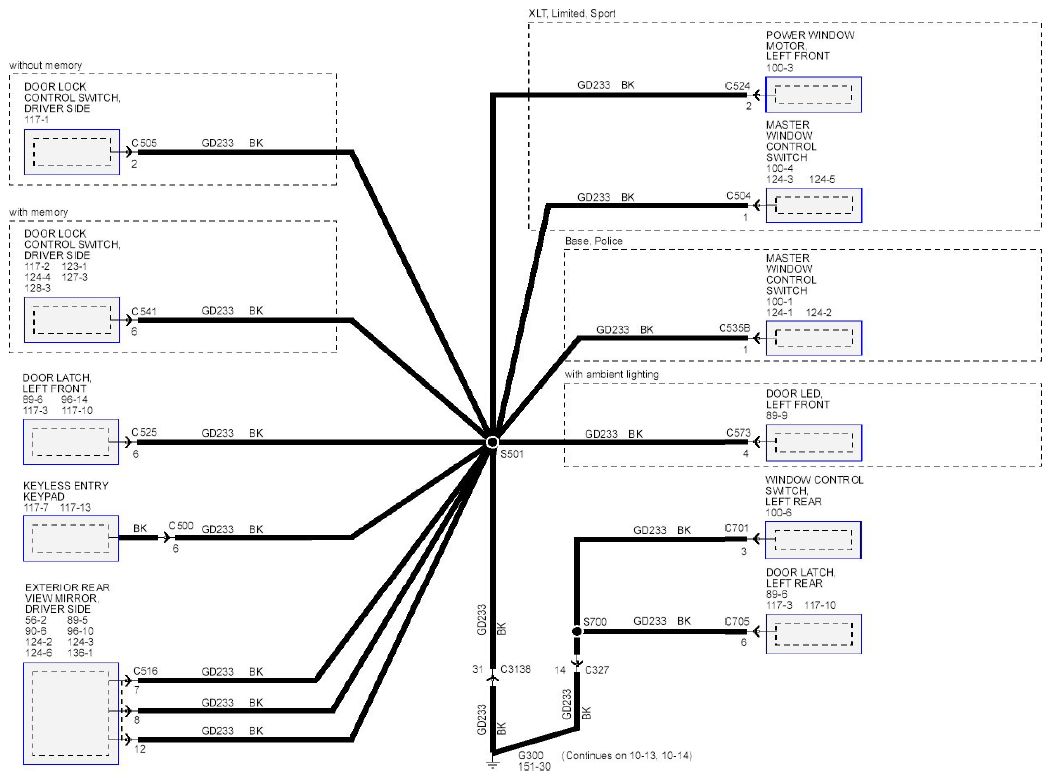

Fig 3: Grounds System (G300) Wiring Diagram (3 Of 3)

Courtesy of FORD MOTOR CO.
