OEM Ground Distribution: Grounds: G302

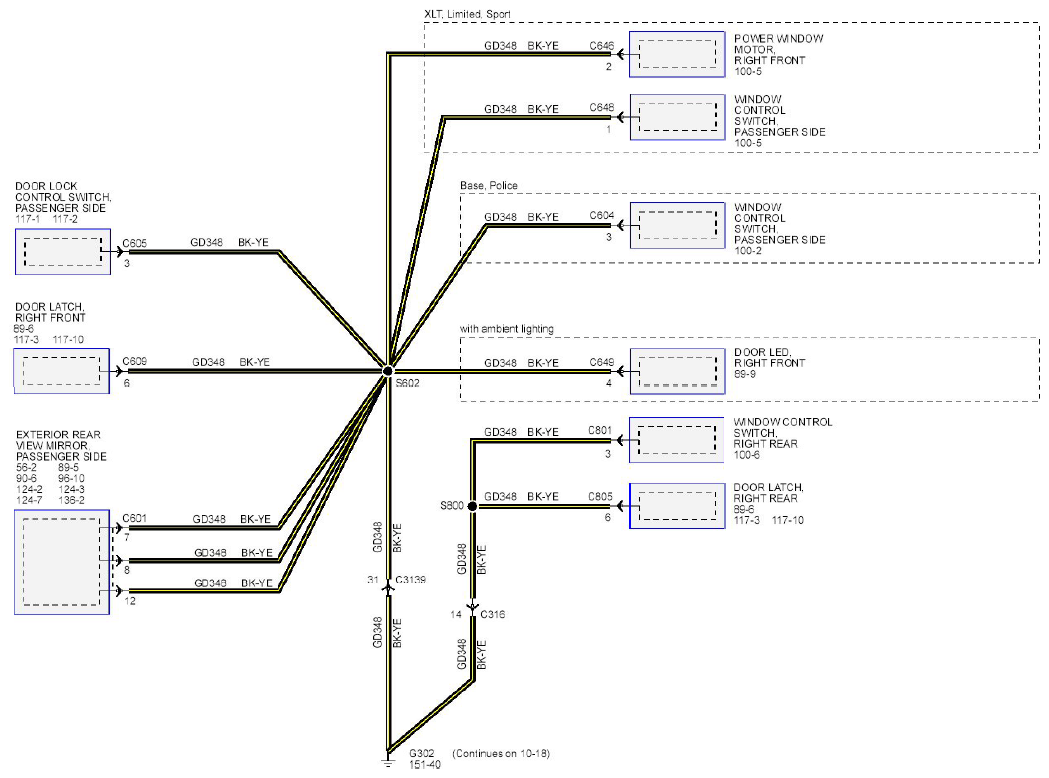

Fig 1: Grounds System (G302) Wiring Diagram (1 Of 2)
G08748289Courtesy of FORD MOTOR CO.

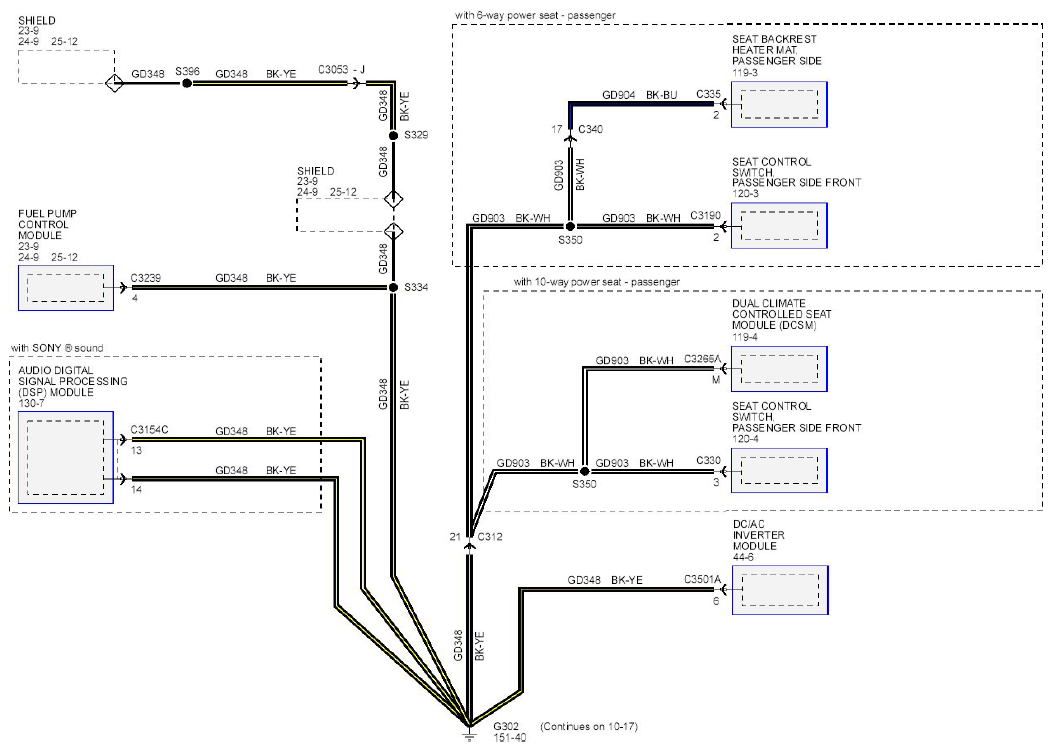

Fig 2: Grounds System (G302) Wiring Diagram (2 Of 2)
G08748290Courtesy of FORD MOTOR CO.
