OEM Ground Distribution: Grounds: G402

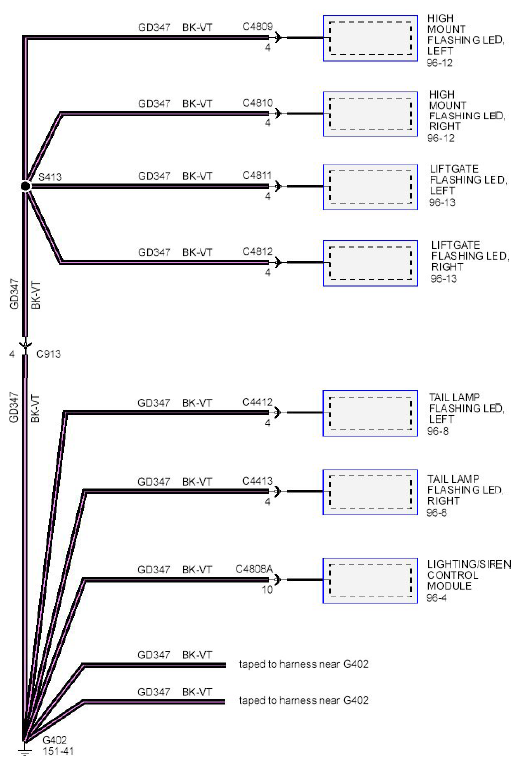

Fig 1: Grounds System (G402) Wiring Diagram
Courtesy of FORD MOTOR CO.
