Premium Plus Audio

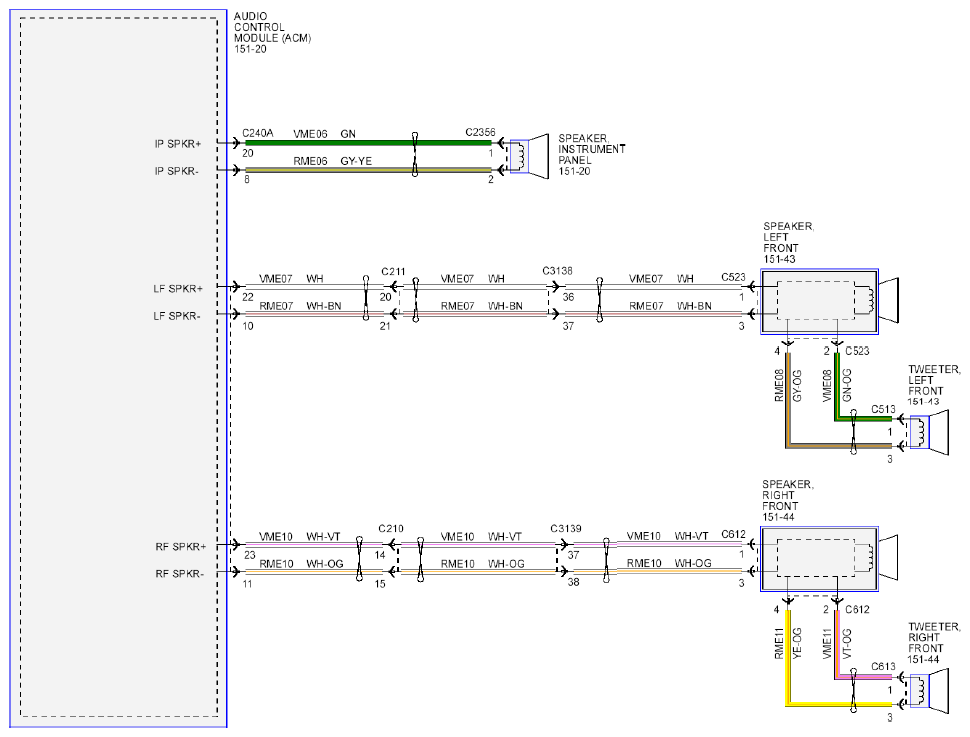

Fig 1: Audio System/Navigation (Premium Plus Audio) - Wiring Diagram (1 Of 2)
G08748597Courtesy of FORD MOTOR CO.

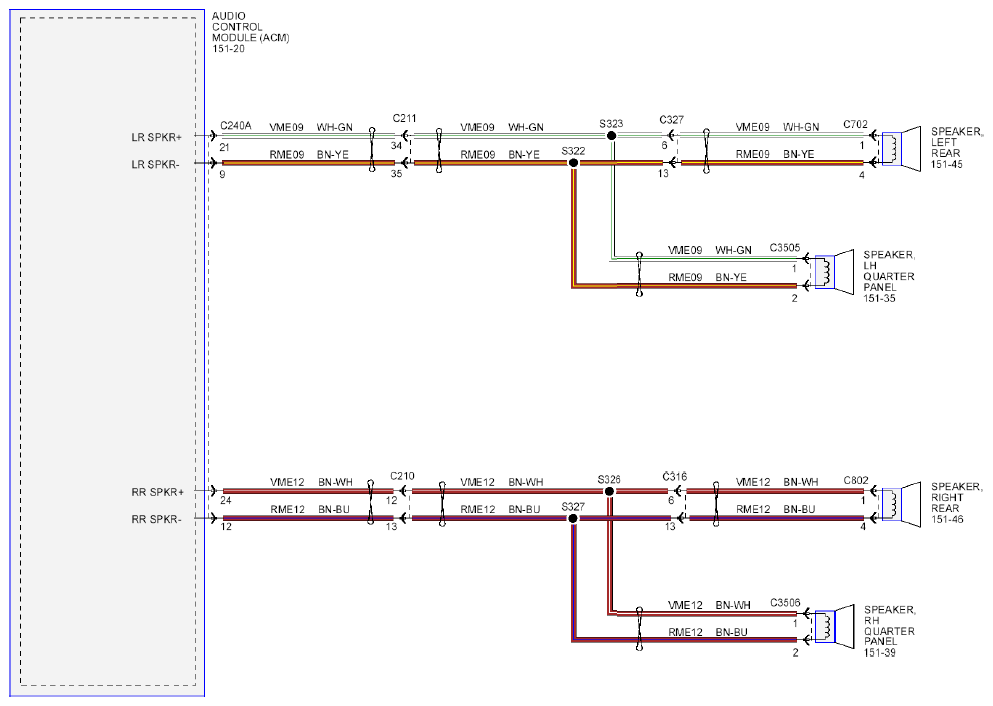

Fig 2: Audio System/Navigation (Premium Plus Audio) - Wiring Diagram (2 Of 2)
G08748598Courtesy of FORD MOTOR CO.
