Sync Gen 2

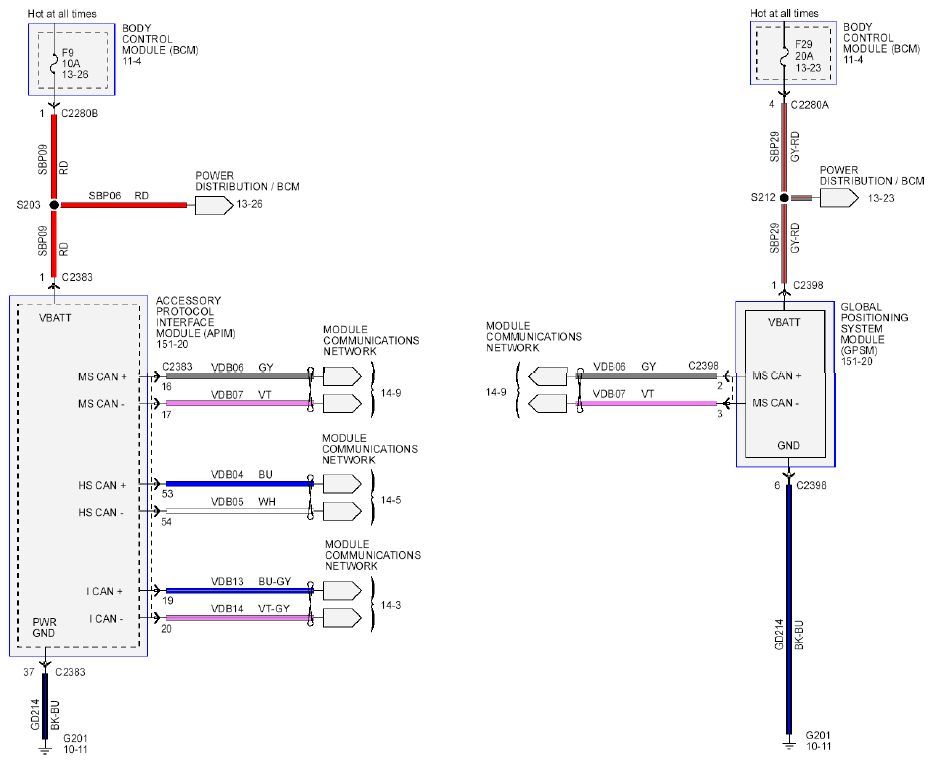

Fig 1: Audio System/Navigation (SYNC Gen 2) - Wiring Diagram (1 Of 4)
G08748606Courtesy of FORD MOTOR CO.

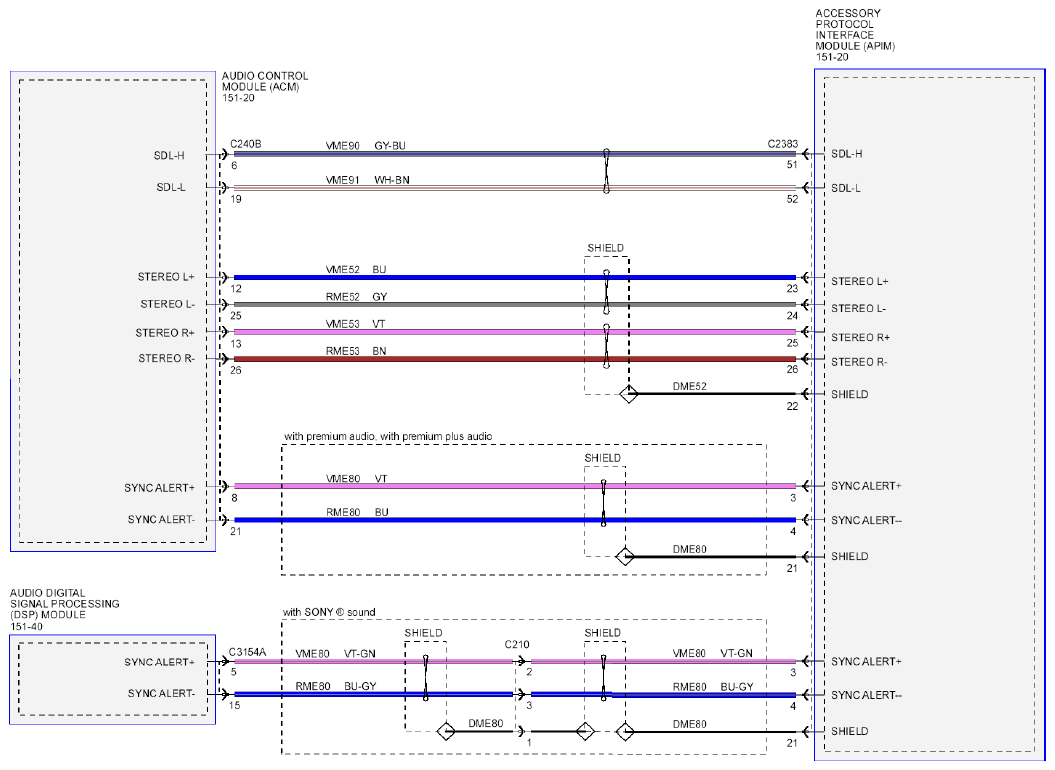

Fig 2: Audio System/Navigation (SYNC Gen 2) - Wiring Diagram (2 Of 4)
G08748607Courtesy of FORD MOTOR CO.

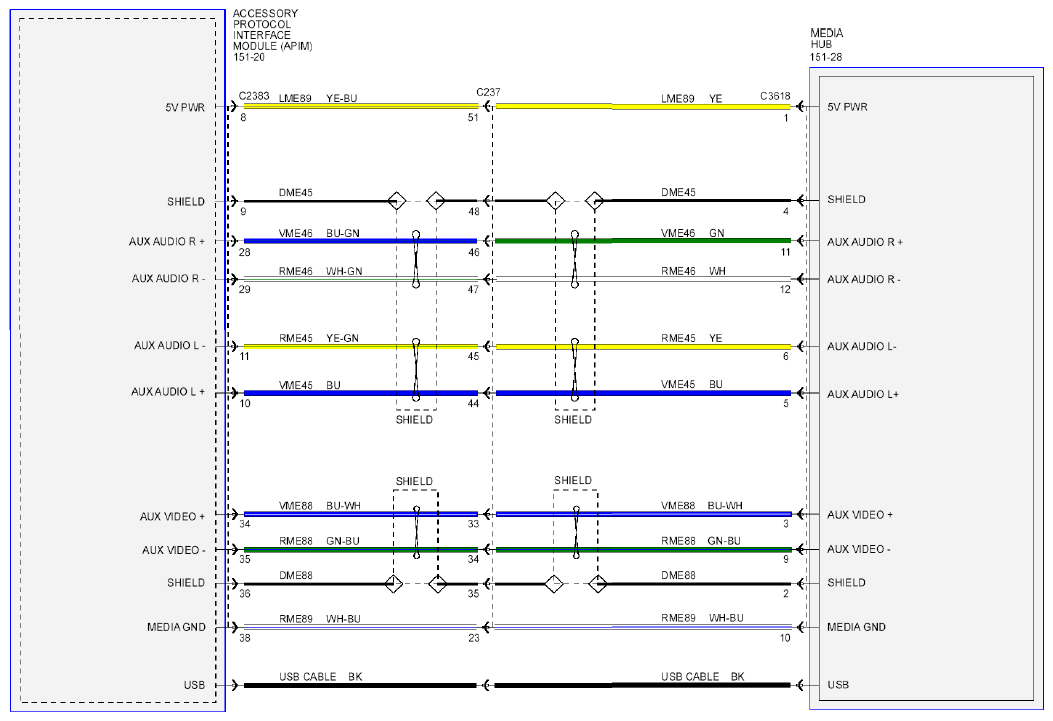

Fig 3: Audio System/Navigation (SYNC Gen 2) - Wiring Diagram (3 Of 4)
G08748608Courtesy of FORD MOTOR CO.

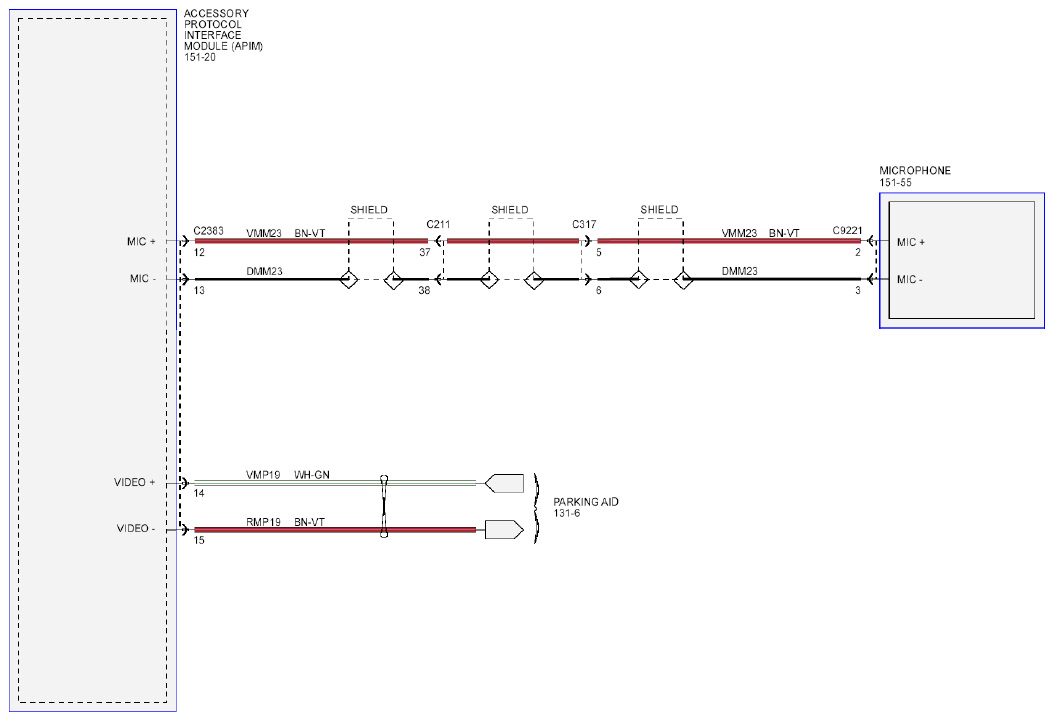

Fig 4: Audio System/Navigation (SYNC Gen 2) - Wiring Diagram (4 Of 4)
G08748609Courtesy of FORD MOTOR CO.
