Audio System/Navigation
›
With Sync
With Sync

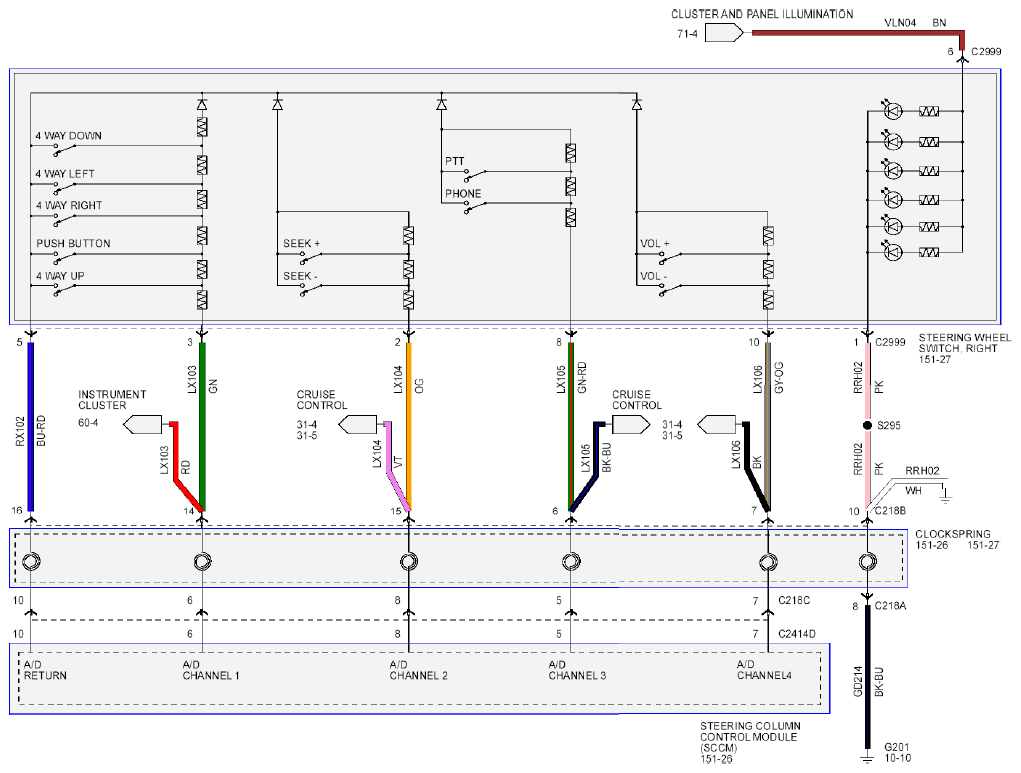

Fig 1: Audio System/Navigation - Wiring Diagram (With Sync)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
