Ford
›
2013
›
Explorer Police Interceptor, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring Diagrams
›
Charging System
Charging System

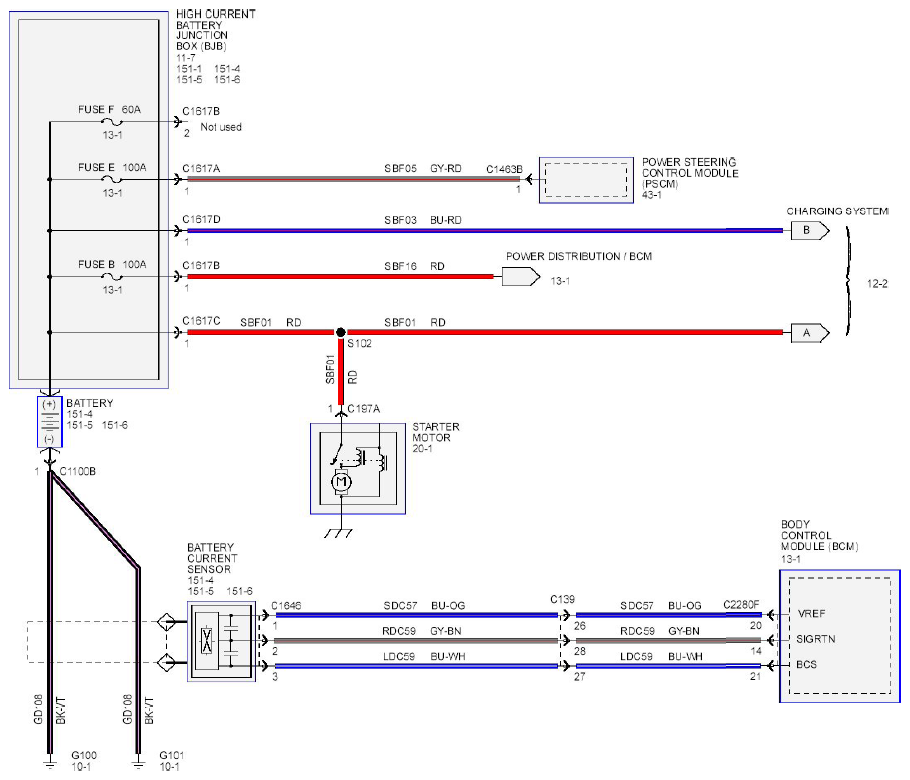

Fig 1: Charging System - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

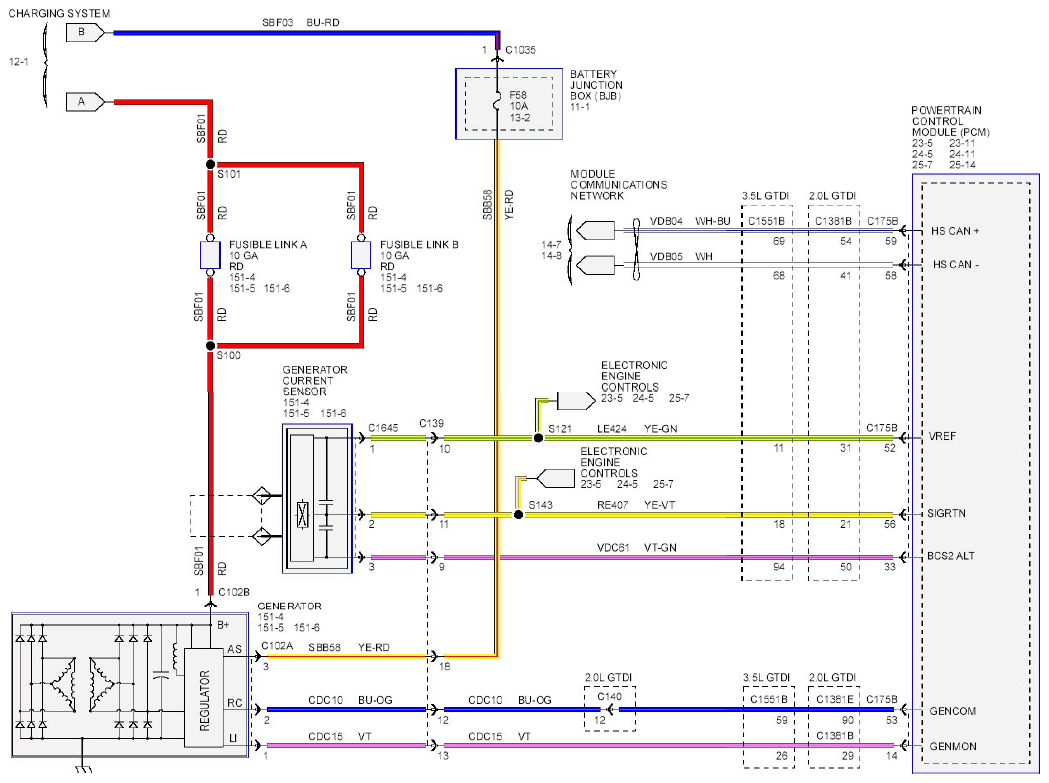

Fig 2: Charging System - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
