OEM Wiring Diagrams: Headlamps/AUTOLAMPS: Notes

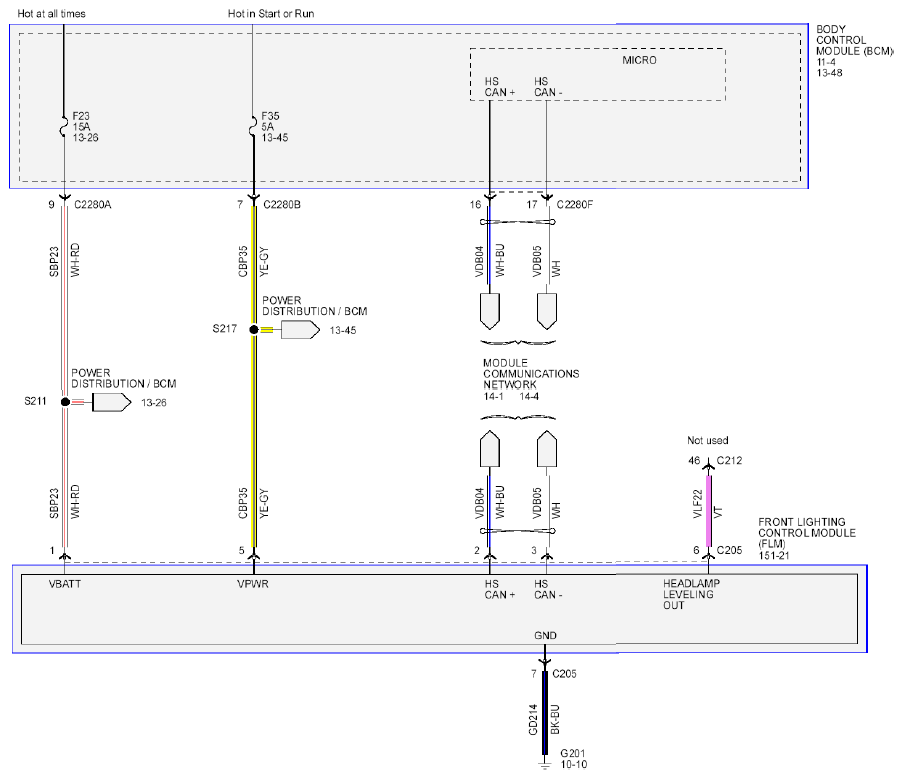

Fig 1: Headlamps/Autolamps - Wiring Diagram
G08748472Courtesy of FORD MOTOR CO.
