Manual Climate Control System

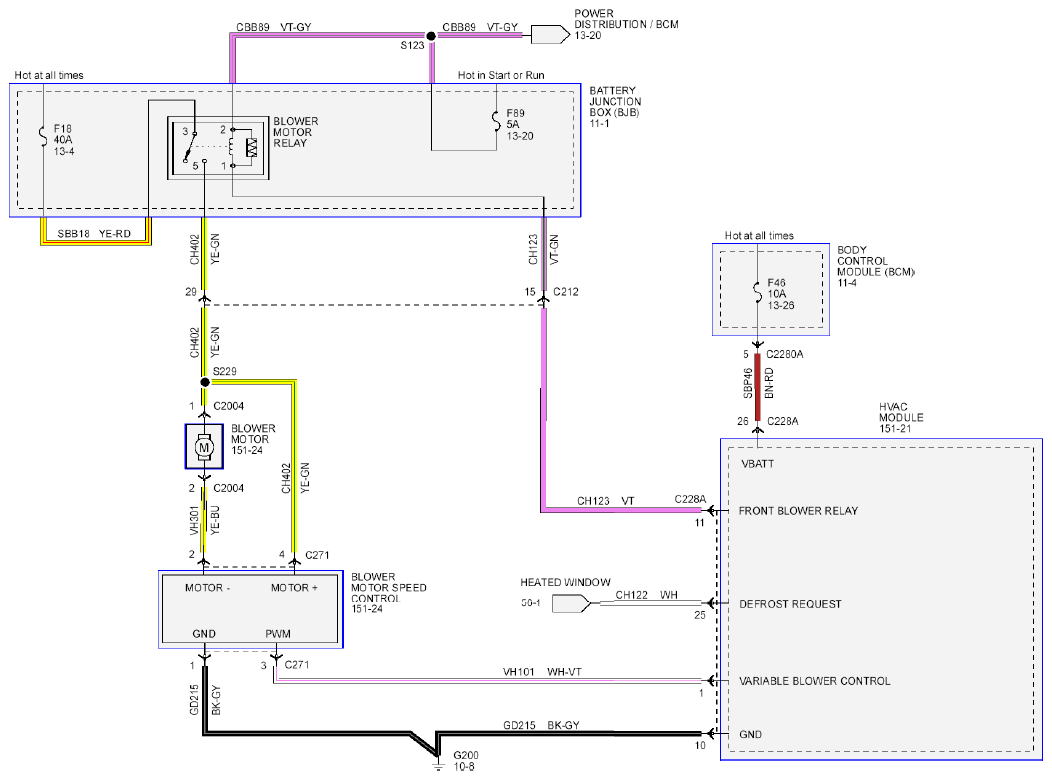

Fig 1: Manual Climate Control System - Wiring Diagram (1 Of 6)

Courtesy of FORD MOTOR CO.

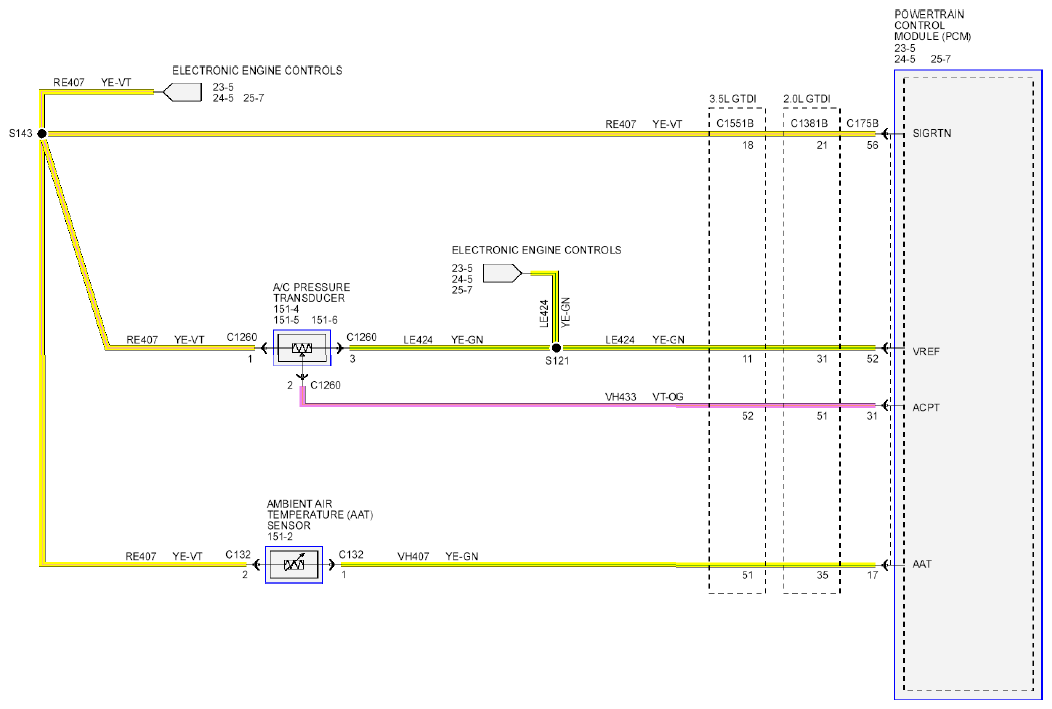

Fig 2: Manual Climate Control System - Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

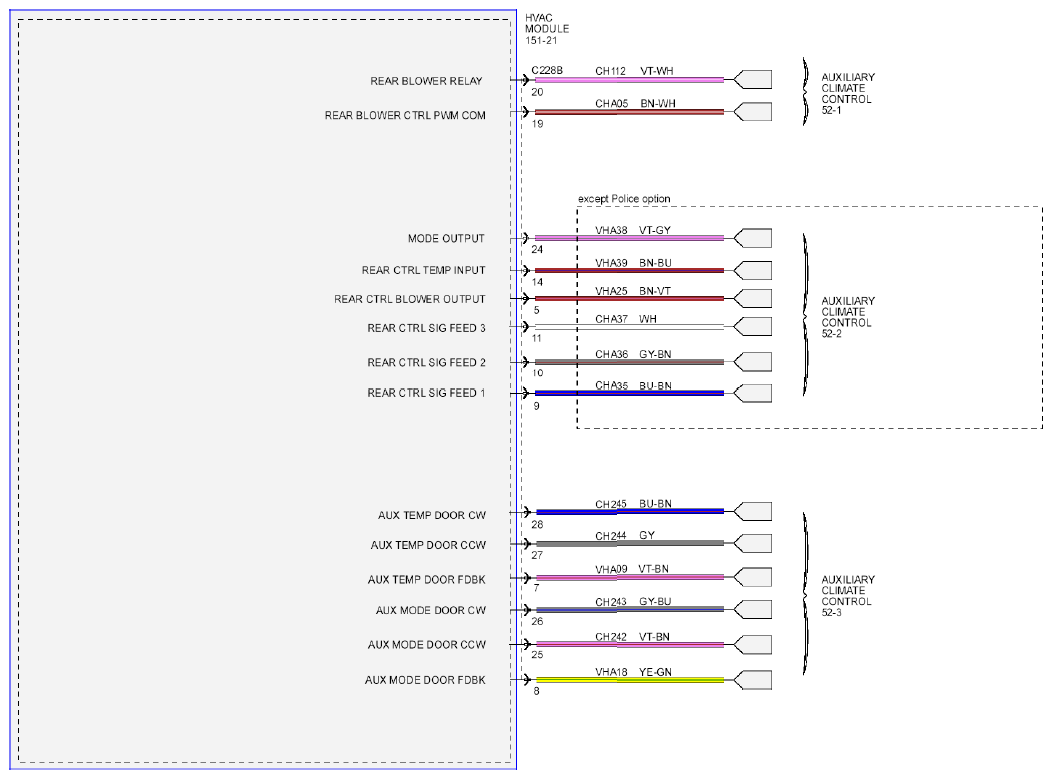

Fig 3: Manual Climate Control System - Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

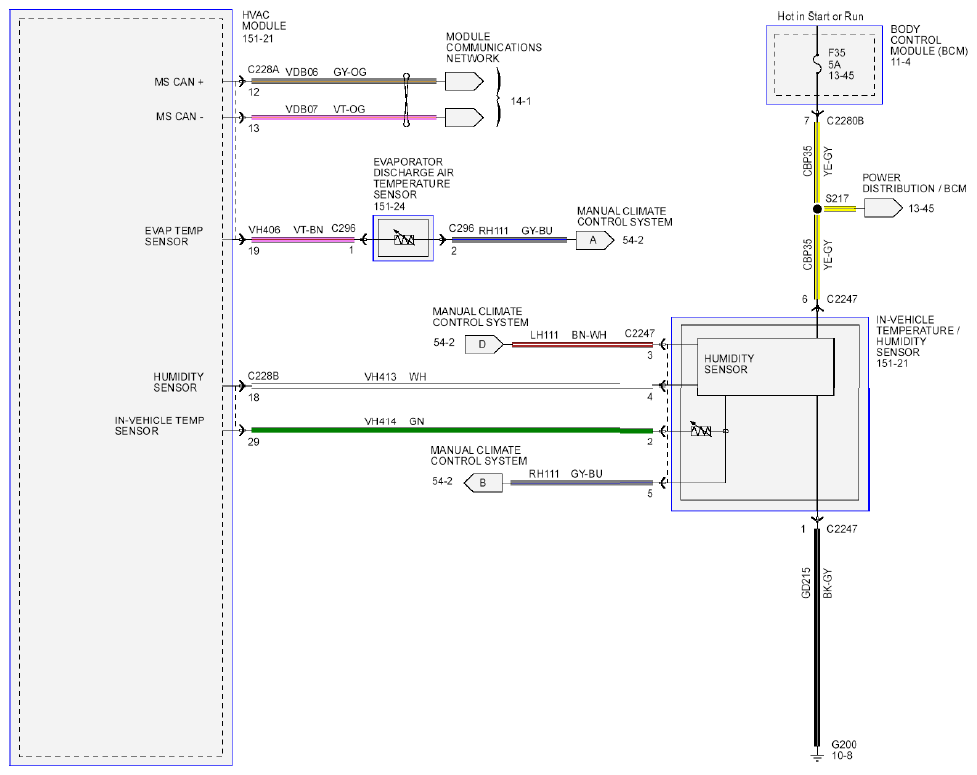

Fig 4: Manual Climate Control System - Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

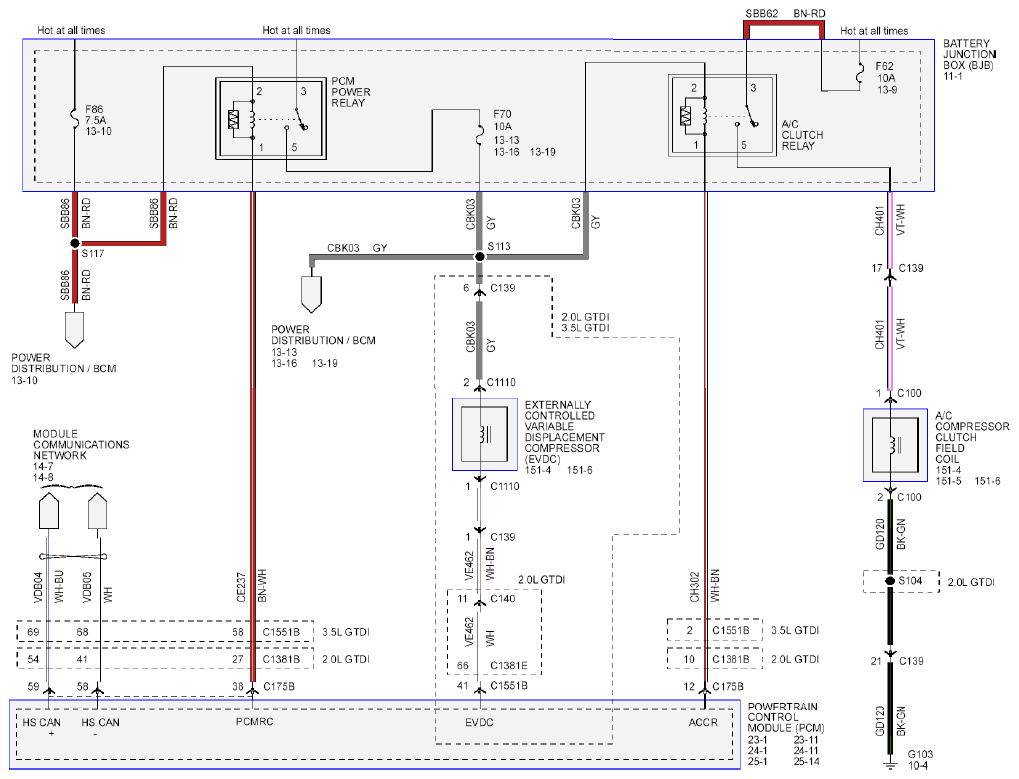

Fig 5: Manual Climate Control System - Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

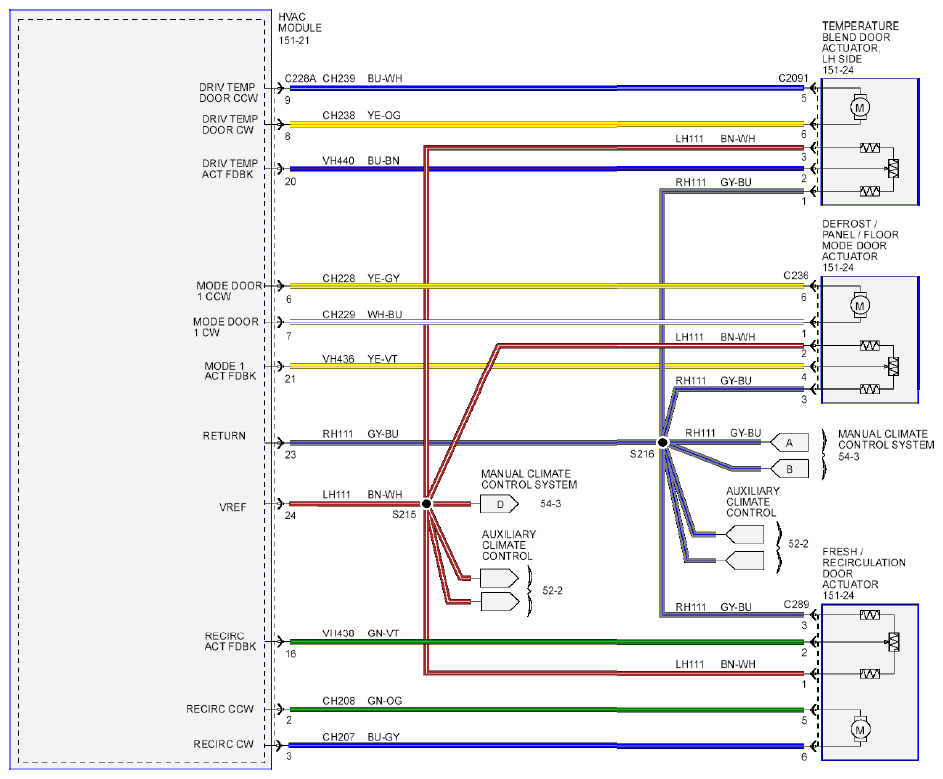

Fig 6: Manual Climate Control System - Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
