Ford
›
2013
›
Explorer Police Interceptor, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring Diagrams
›
Module Communication Network
›
2.0L GTDI
2.0L GTDI

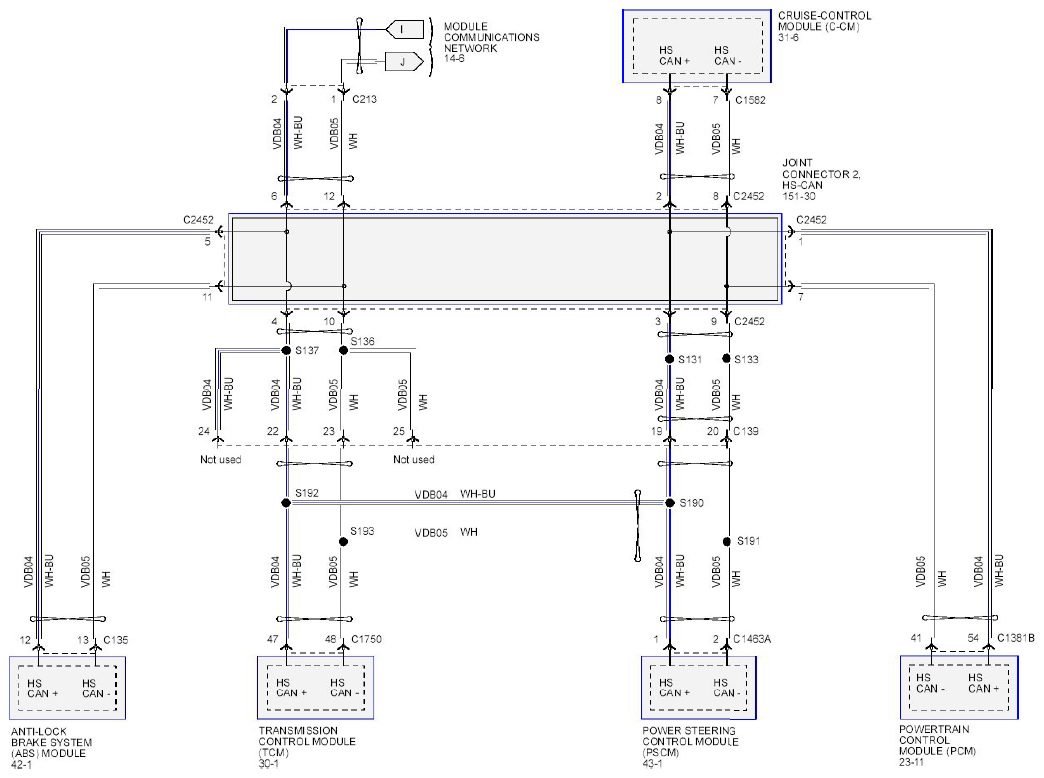

Fig 1: Module Communication Network - Wiring Diagram (2.0L GTDI)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
