Module Communication Network
›
3.5L/3.7L TIVCT 3.5L GTDI
3.5L/3.7L TIVCT 3.5L GTDI

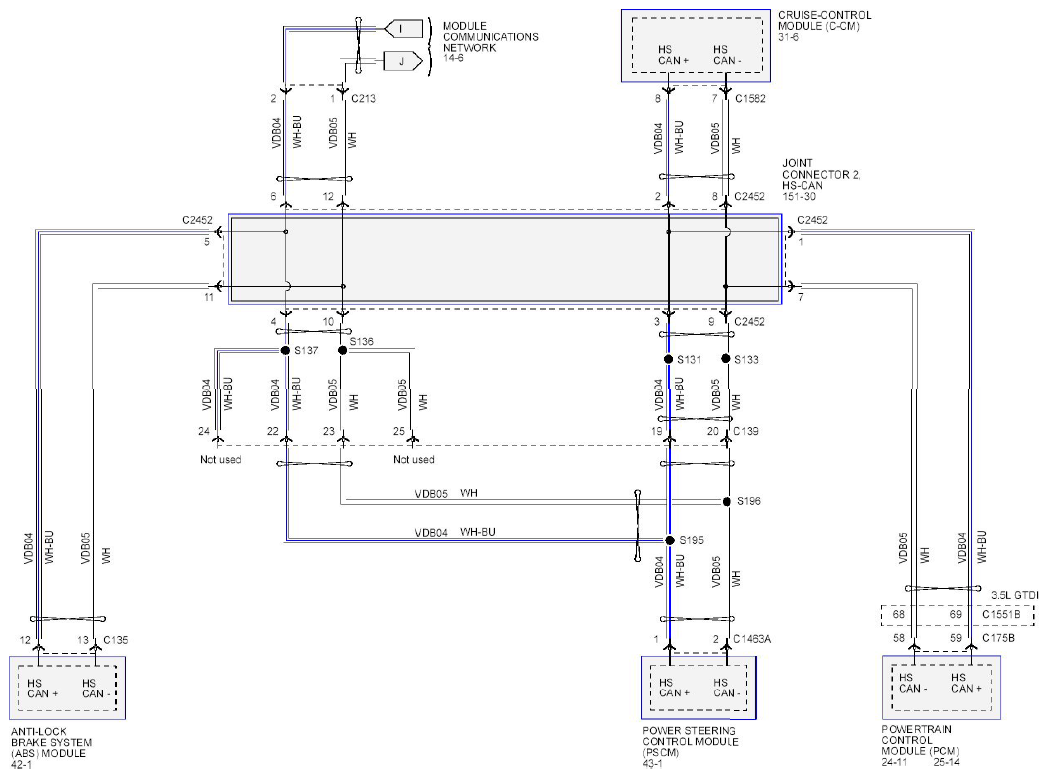

Fig 1: Module Communication Network (3.5L/3.7L TIVCT 3.5L GTDI) - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
