Ford
›
2013
›
Explorer Police Interceptor, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring Diagrams
›
Module Communication Network
›
Except Sync Gen 2
Except Sync Gen 2

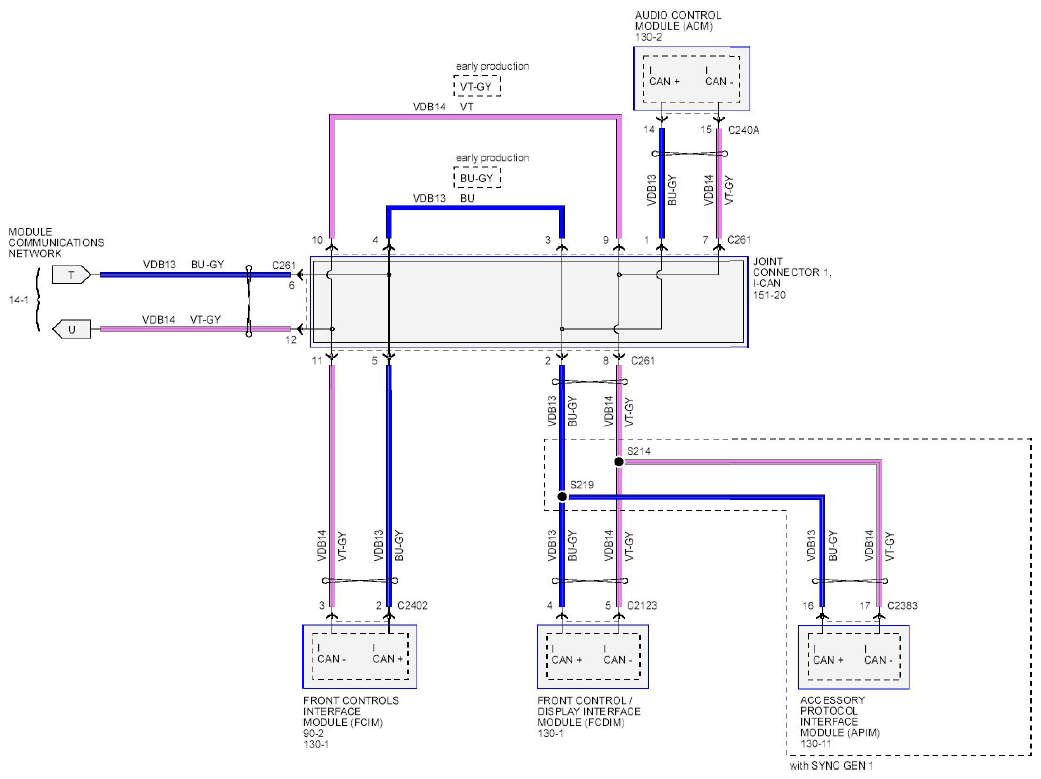

Fig 1: Module Communication Network - Wiring Diagram (Except SYNC GEN 2)
