Sync Gen 2

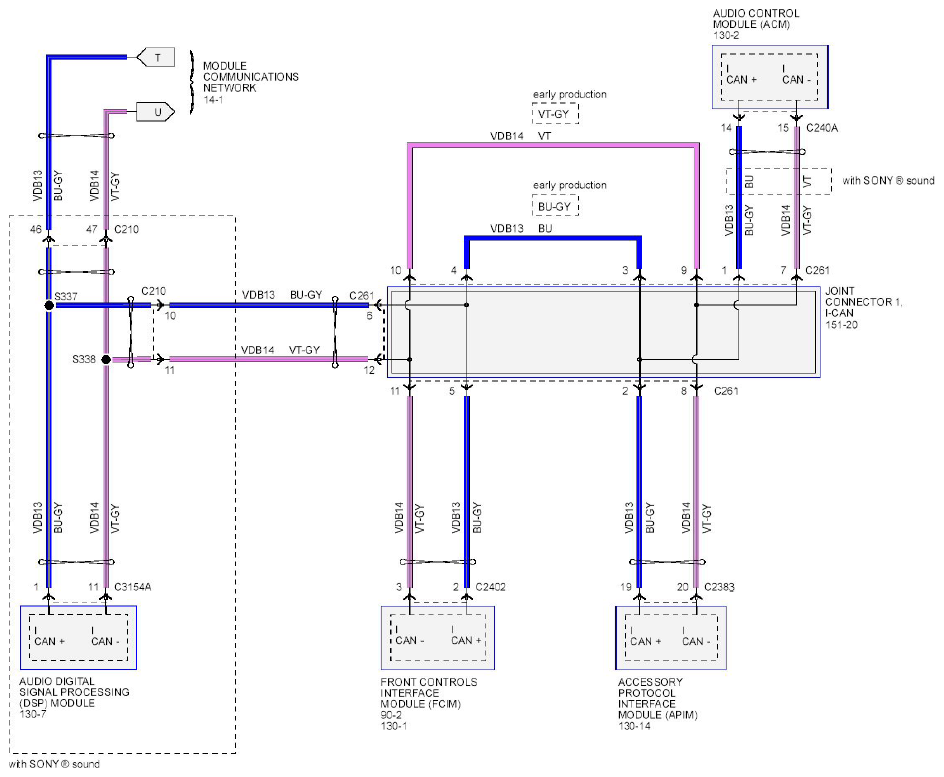

Fig 1: Module Communication Network (SYNC GEN 2) - Wiring Diagram
G08748346Courtesy of FORD MOTOR CO.
