Police Option: Notes

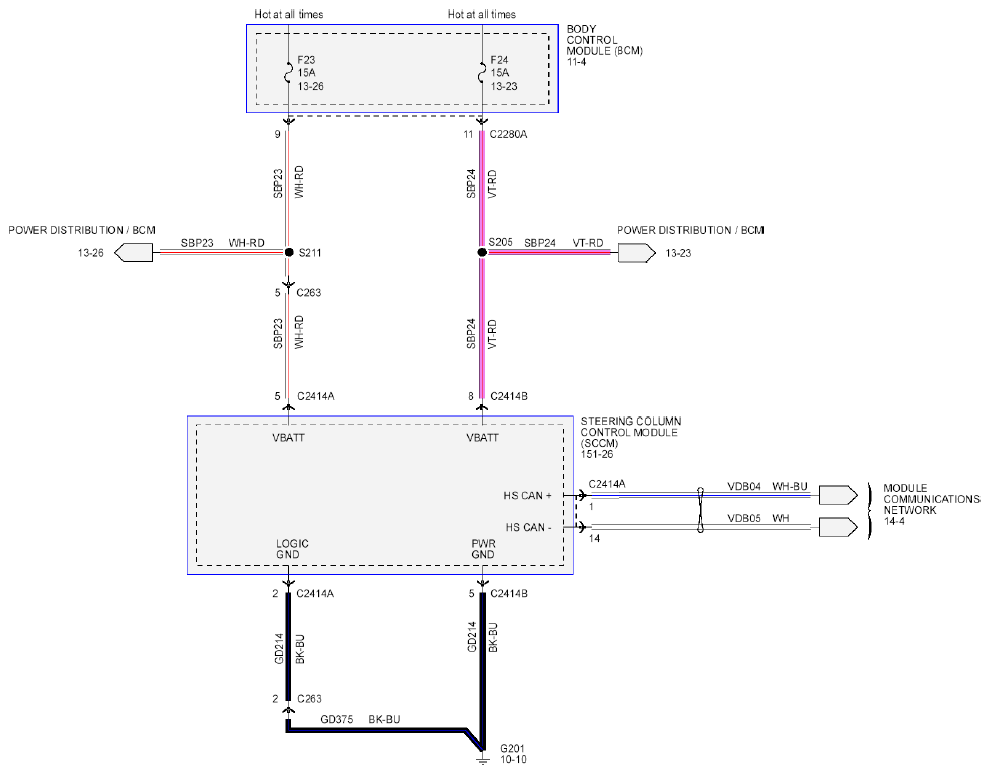

Fig 1: Police Option - Wiring Diagram (1 Of 11)

G08748504

Courtesy of FORD MOTOR CO.

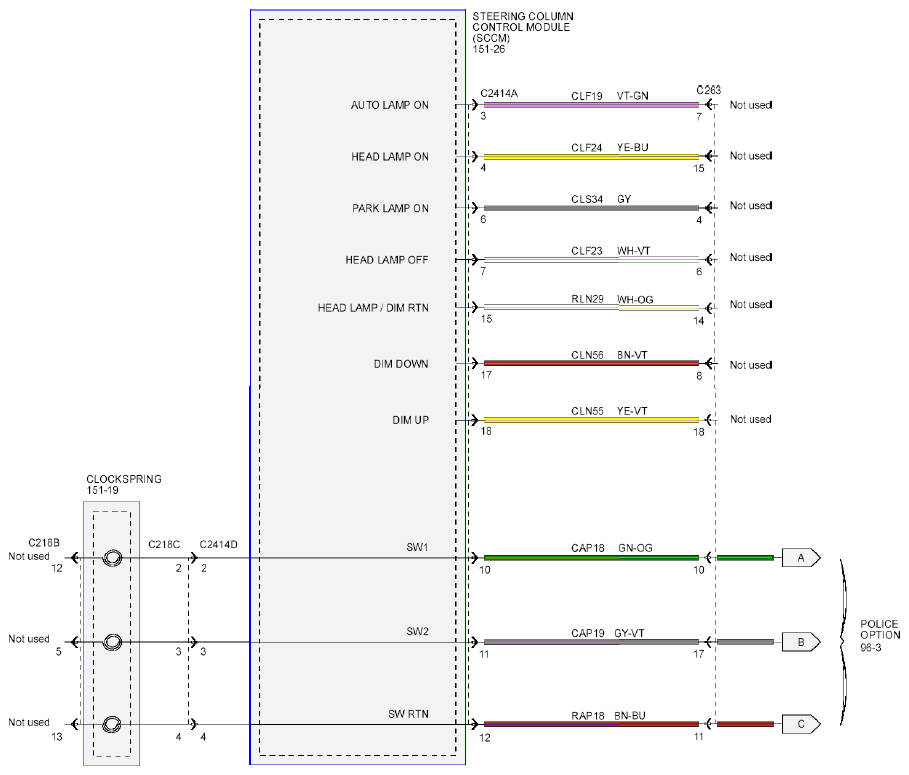

Fig 2: Police Option - Wiring Diagram (2 Of 11)

G08748505

Courtesy of FORD MOTOR CO.

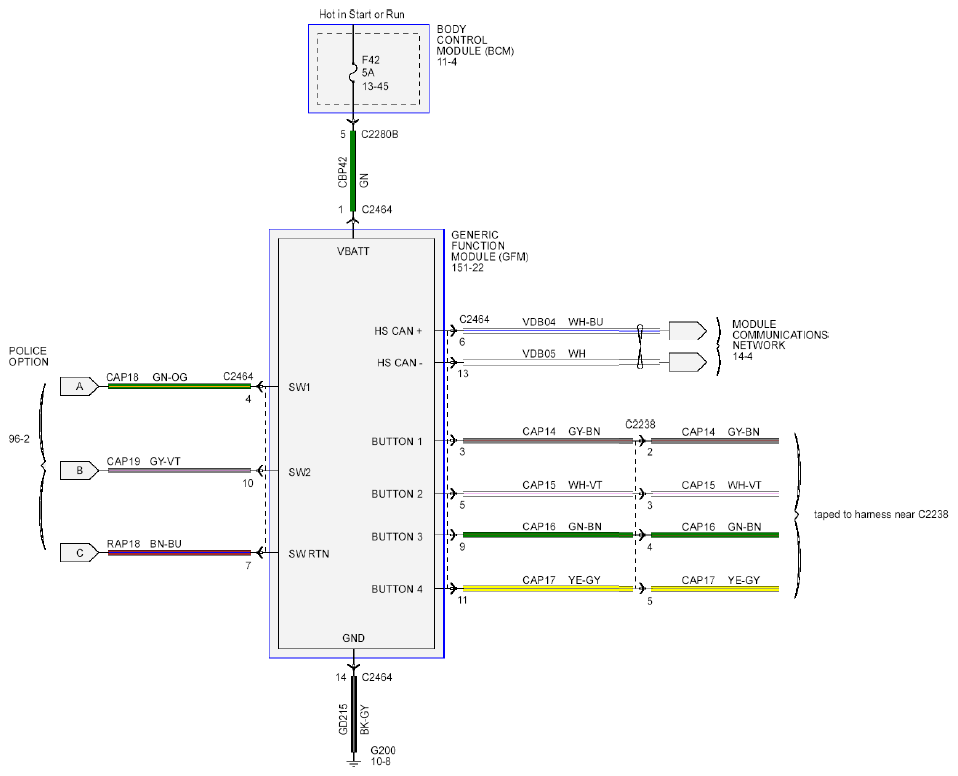

Fig 3: Police Option - Wiring Diagram (3 Of 11)

G08748506

Courtesy of FORD MOTOR CO.

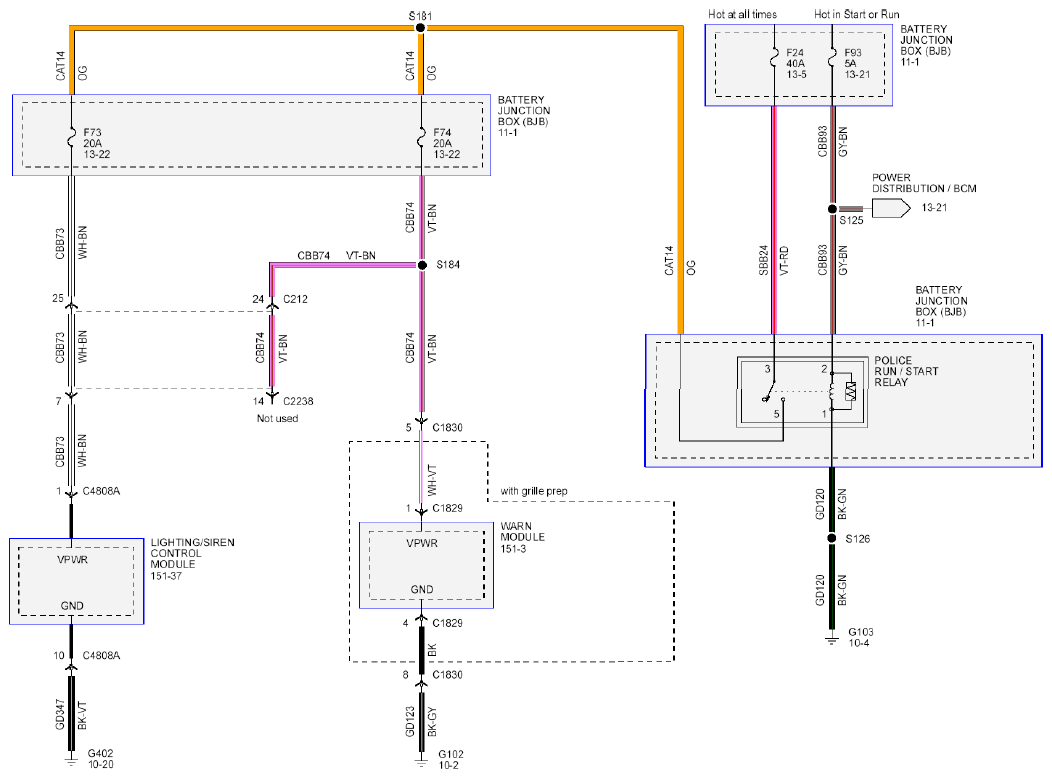

Fig 4: Police Option - Wiring Diagram (4 Of 11)

G08748507

Courtesy of FORD MOTOR CO.

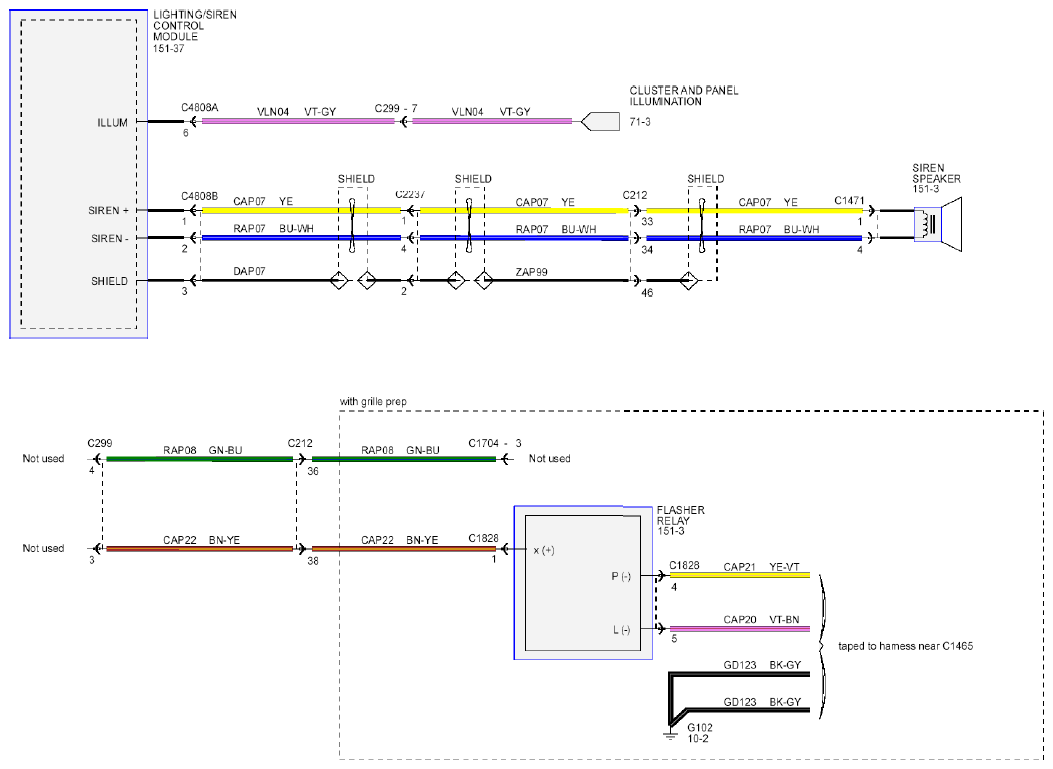

Fig 5: Police Option - Wiring Diagram (5 Of 11)

G08748508

Courtesy of FORD MOTOR CO.

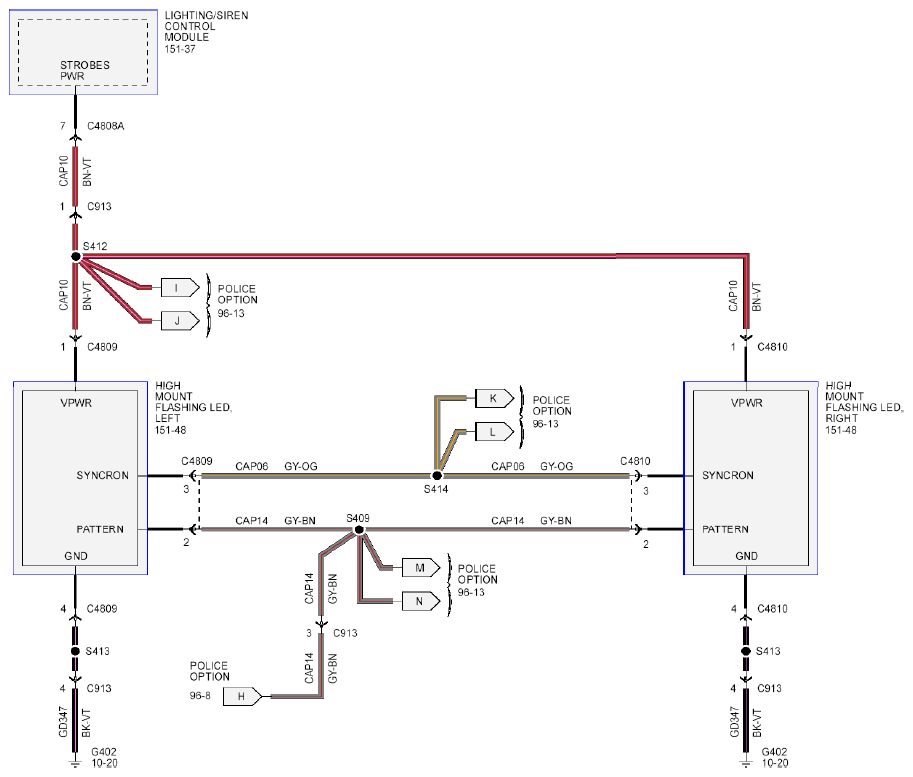

Fig 6: Police Option - Wiring Diagram (6 Of 11)

G08748515

Courtesy of FORD MOTOR CO.

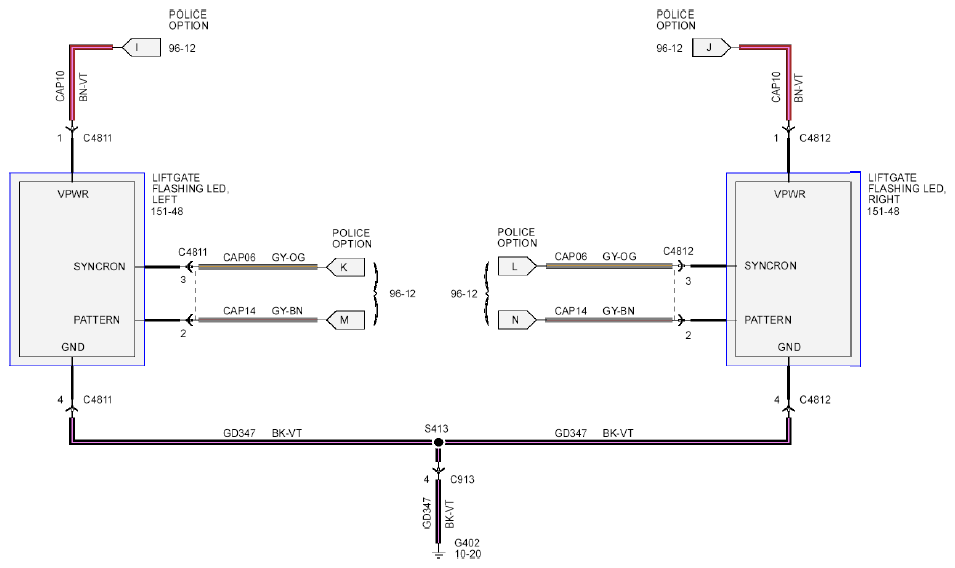

Fig 7: Police Option - Wiring Diagram (7 Of 11)

G08748516

Courtesy of FORD MOTOR CO.

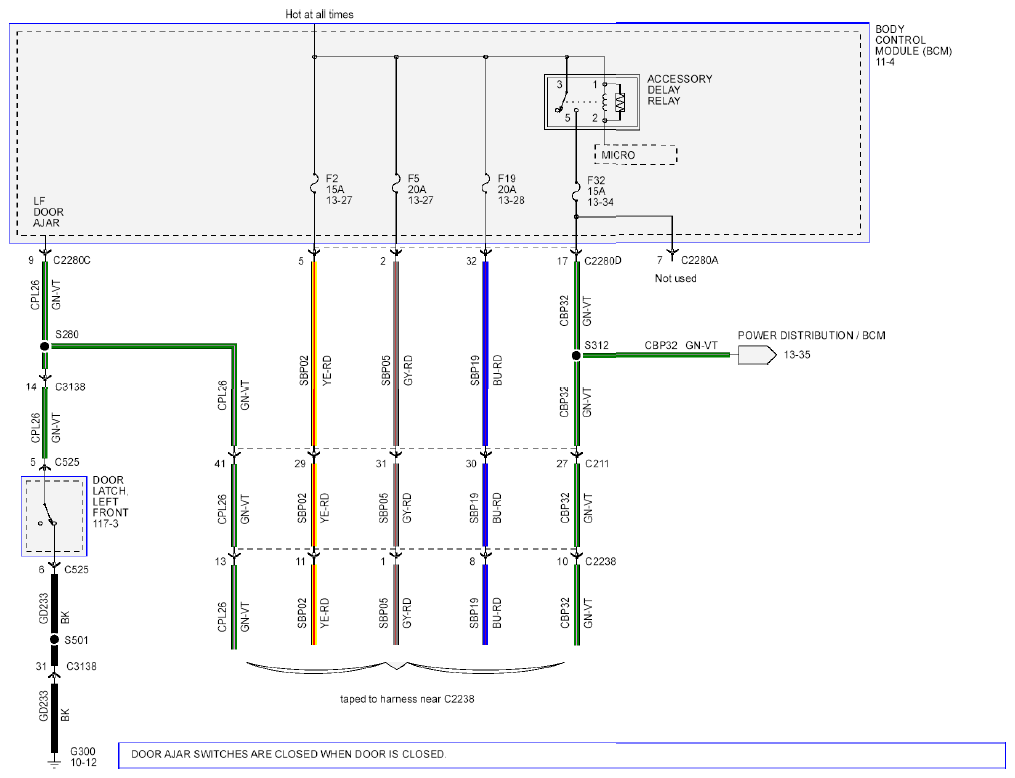

Fig 8: Police Option - Wiring Diagram (8 Of 11)

G08748517

Courtesy of FORD MOTOR CO.

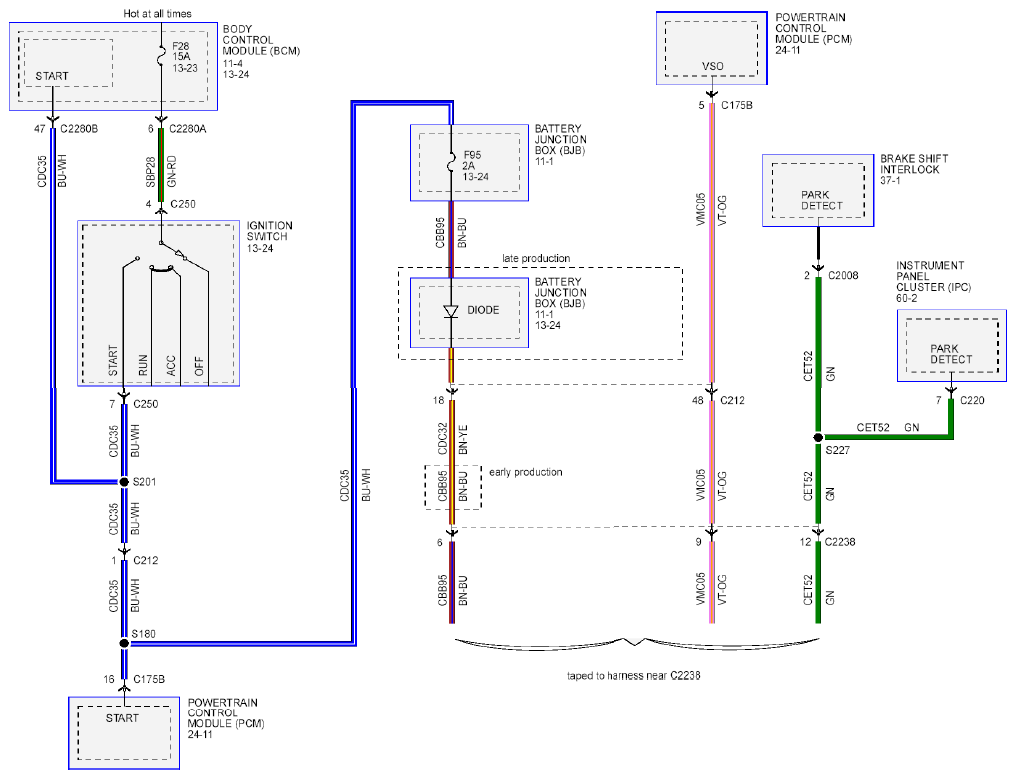

Fig 9: Police Option - Wiring Diagram (9 Of 11)

G08748518

Courtesy of FORD MOTOR CO.

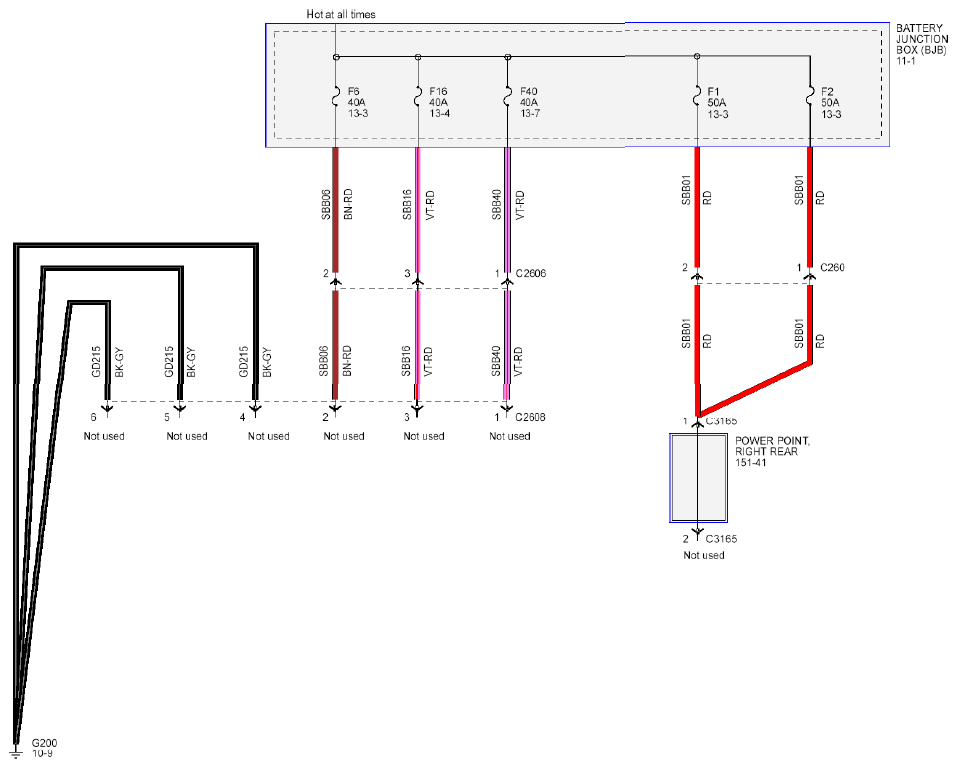

Fig 10: Police Option - Wiring Diagram (10 Of 11)

G08748519

Courtesy of FORD MOTOR CO.

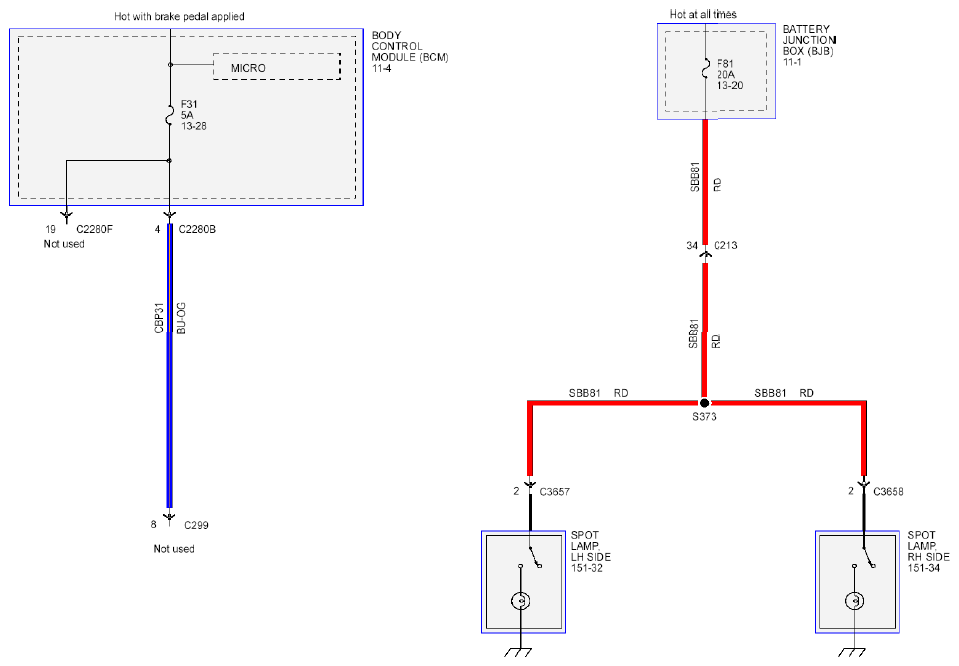

Fig 11: Police Option - Wiring Diagram (11 Of 11)

G08748520

Courtesy of FORD MOTOR CO.
