Power Distribution/BCM: F13

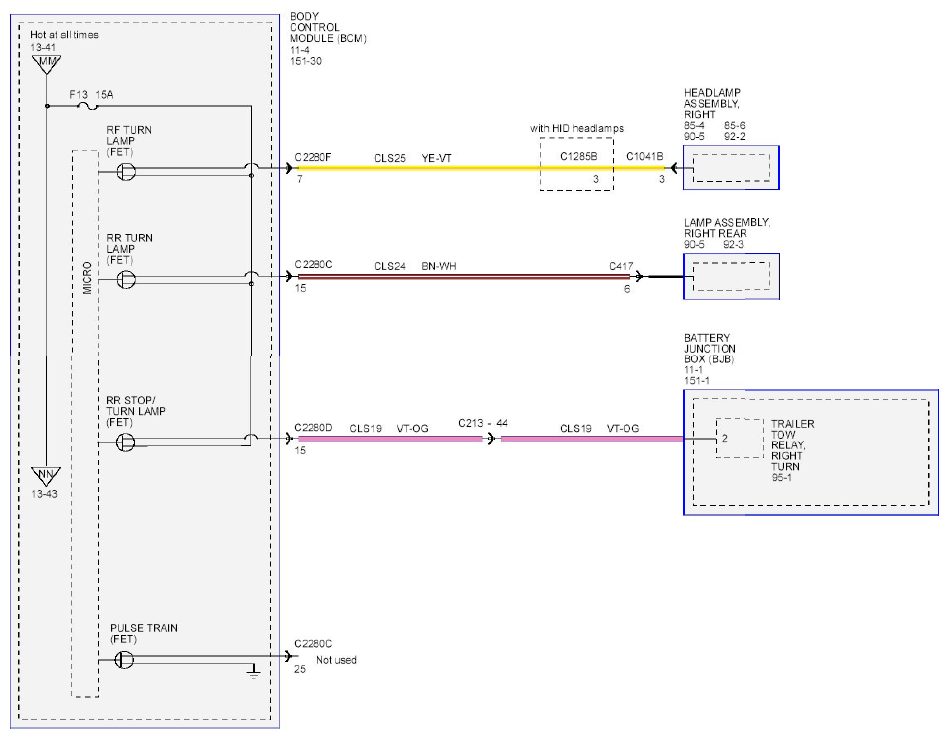

Fig 1: Power Distribution/BCM - Wiring Diagram - F13
G08748337Courtesy of FORD MOTOR CO.
