Ford
›
2013
›
Explorer Police Interceptor, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring Diagrams
›
Power Distribution/BCM
›
F4
Power Distribution/BCM: F4

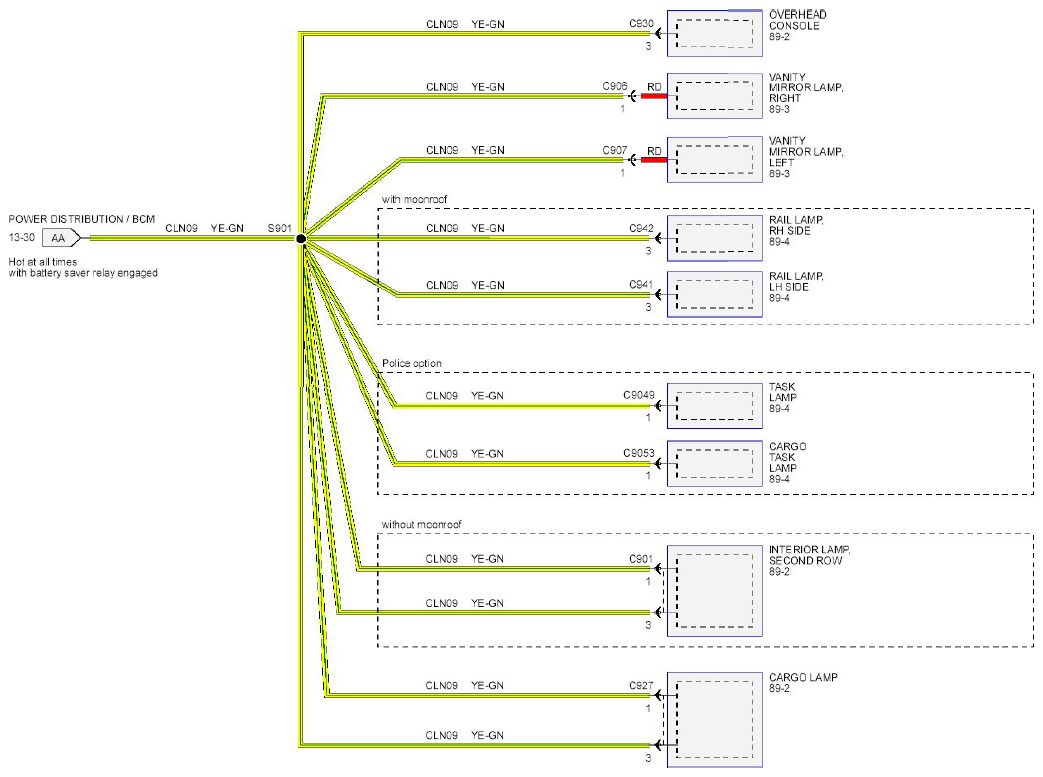

Fig 1: Power Distribution/BCM - Wiring Diagram - F4 (1 Of 2)
Courtesy of FORD MOTOR CO.

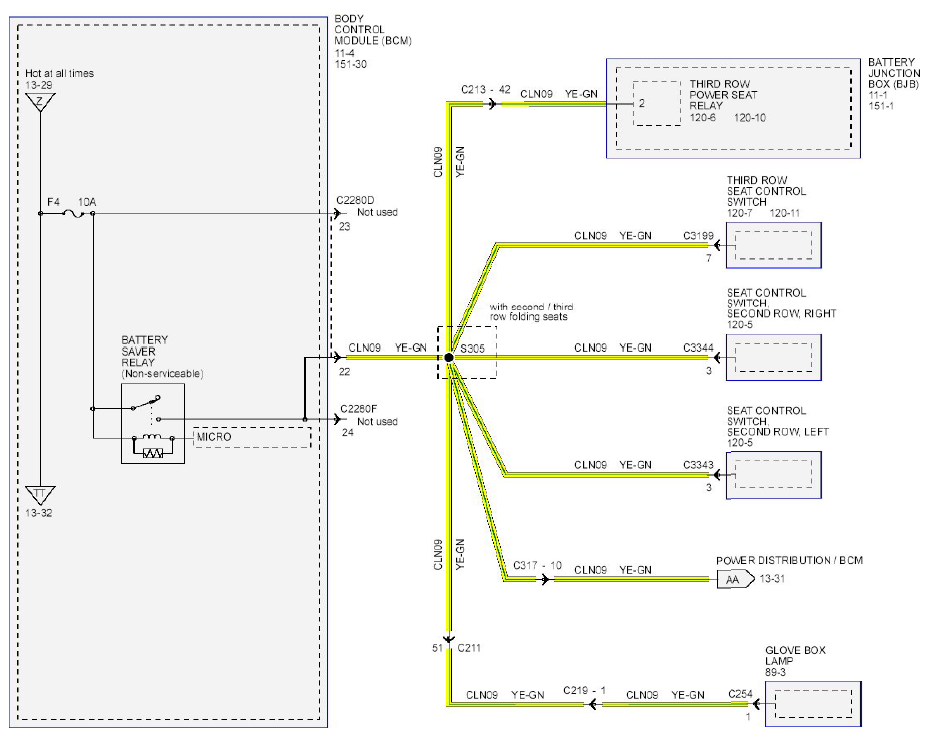

Fig 2: Power Distribution/BCM - Wiring Diagram - F4 (2 Of 2)
Courtesy of FORD MOTOR CO.
