Power Distribution/BCM: Notes

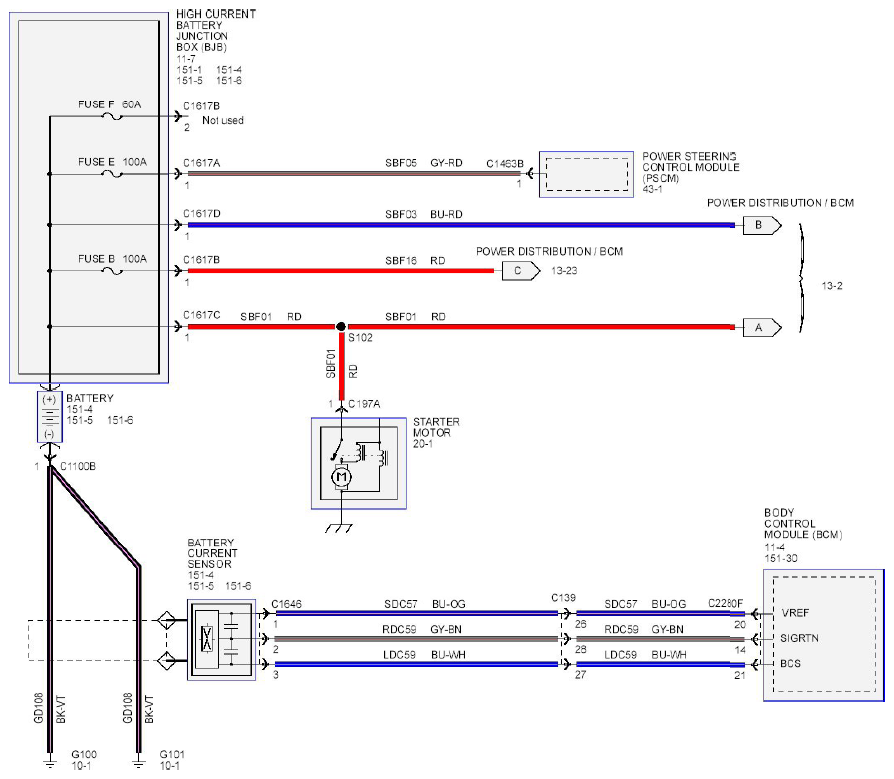

Fig 1: Power Distribution/BCM - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
