Ford
›
2013
›
Explorer Police Interceptor, AWD
›
Repair and Diagnosis
›
Electrical
›
Body Electrical
›
OEM Wiring Diagrams
›
Power Liftgate
Power Liftgate

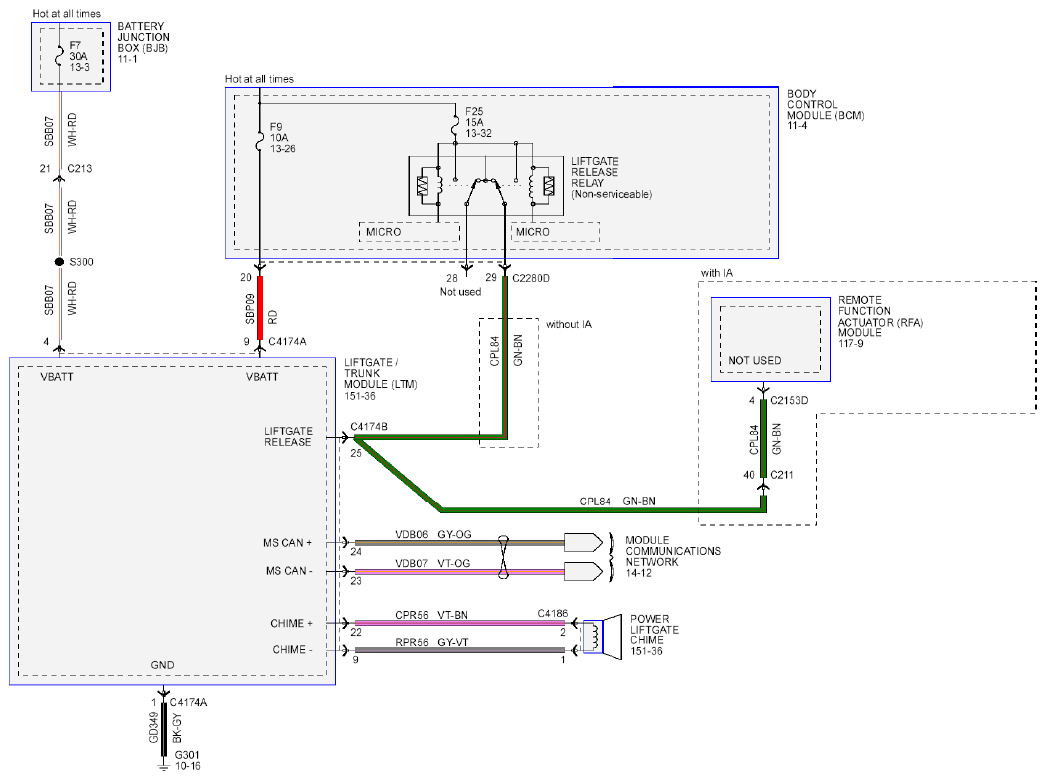

Fig 1: Power Liftgate - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

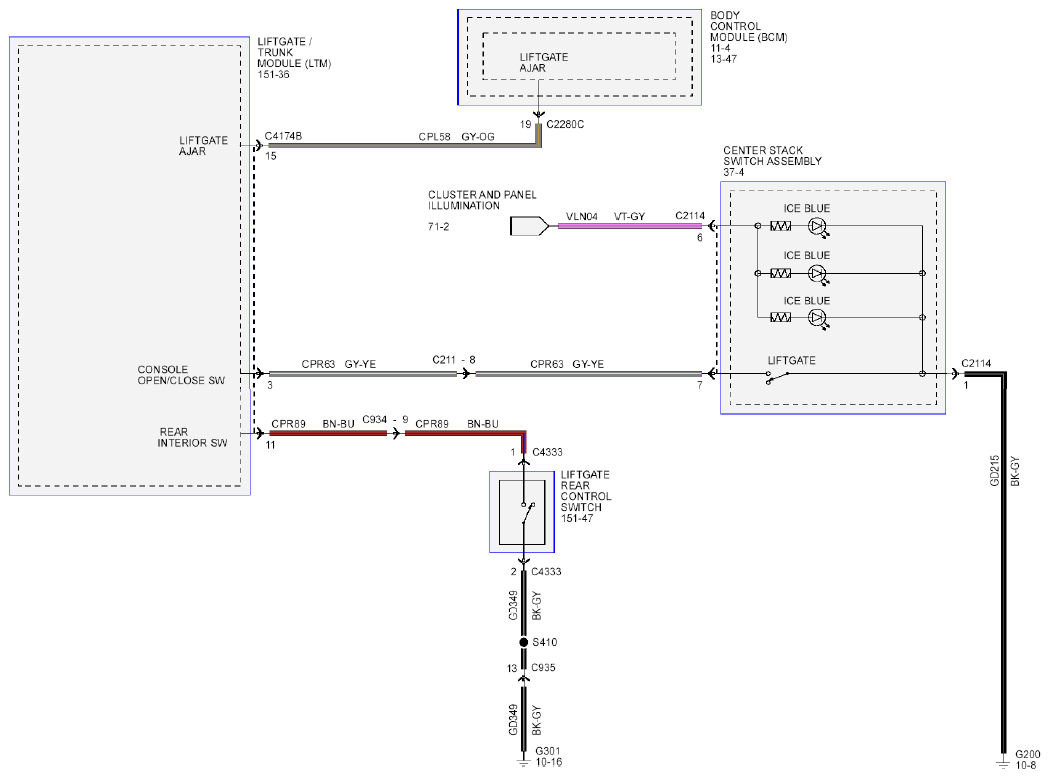

Fig 2: Power Liftgate - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

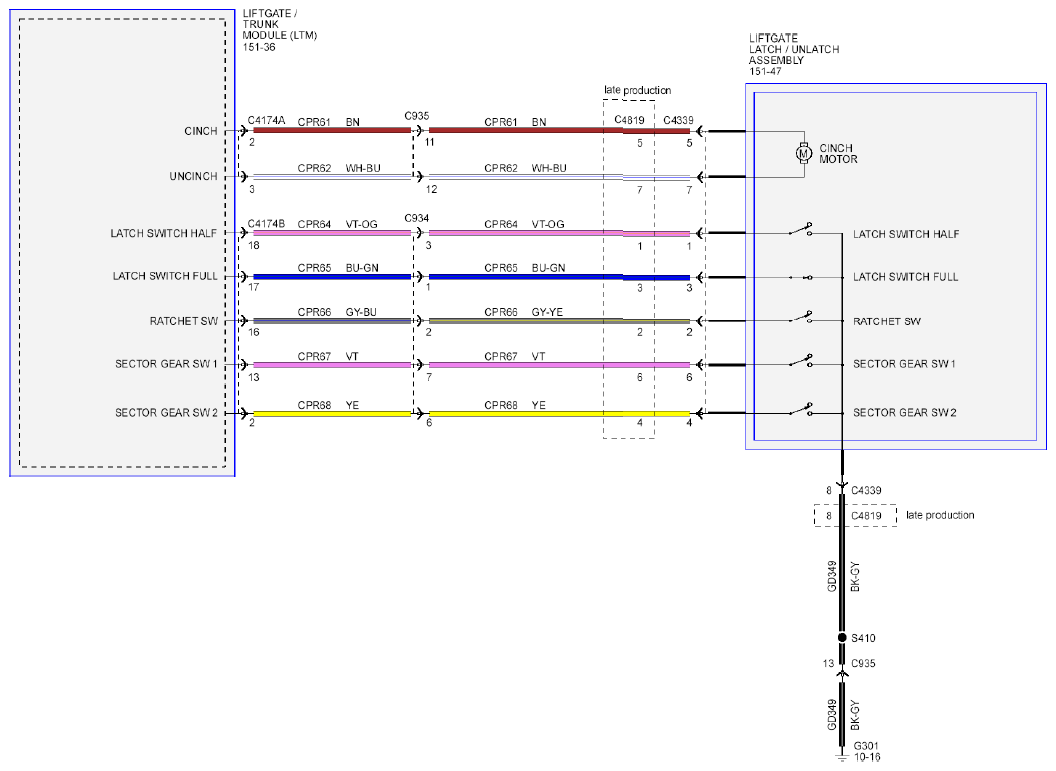

Fig 3: Power Liftgate - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

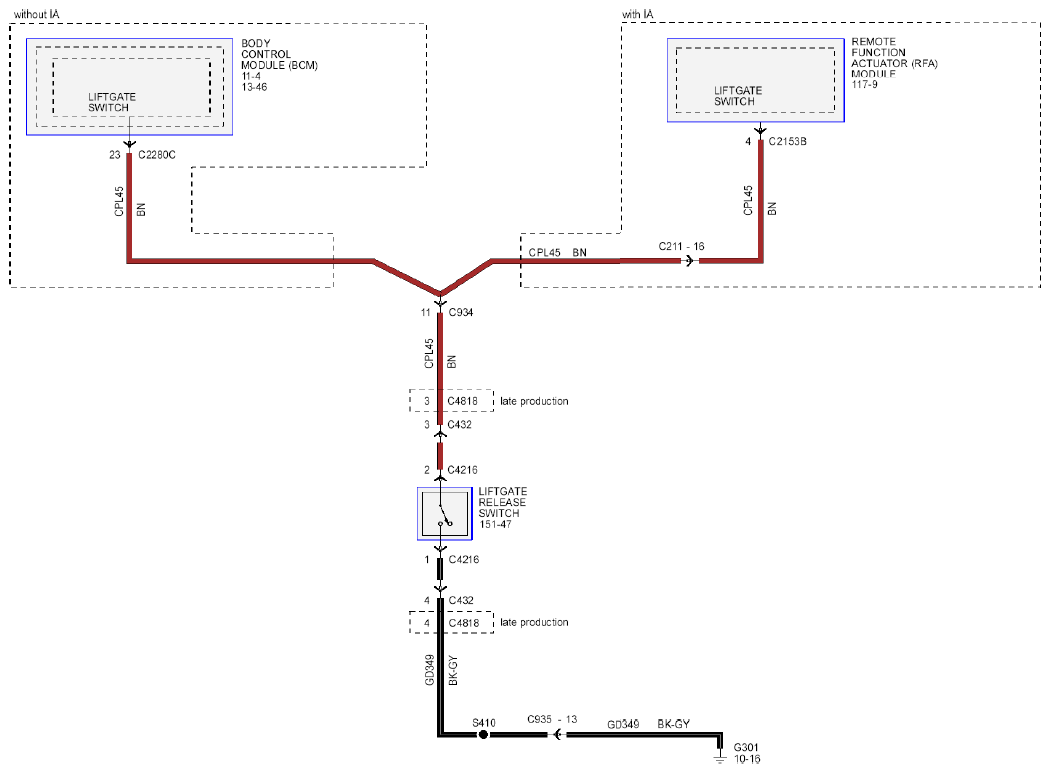

Fig 4: Power Liftgate - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

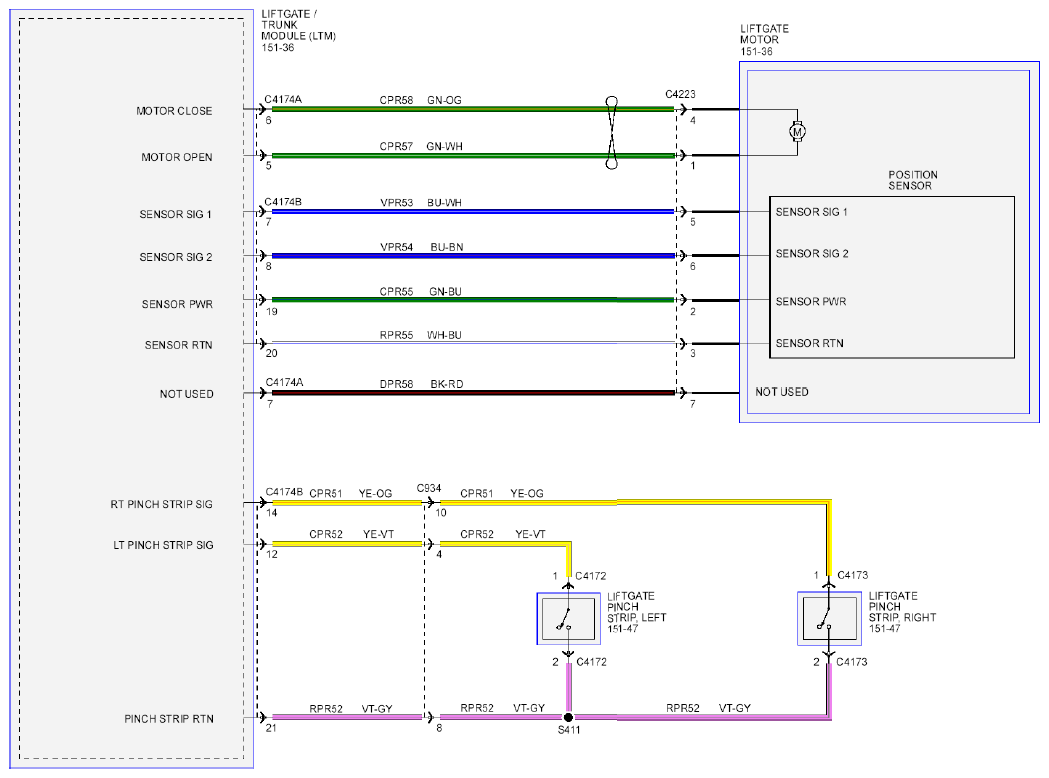

Fig 5: Power Liftgate - Wiring Diagram (5 Of 5)
Courtesy of FORD MOTOR CO.
