Power Windows
›
Base, Police
Base, Police

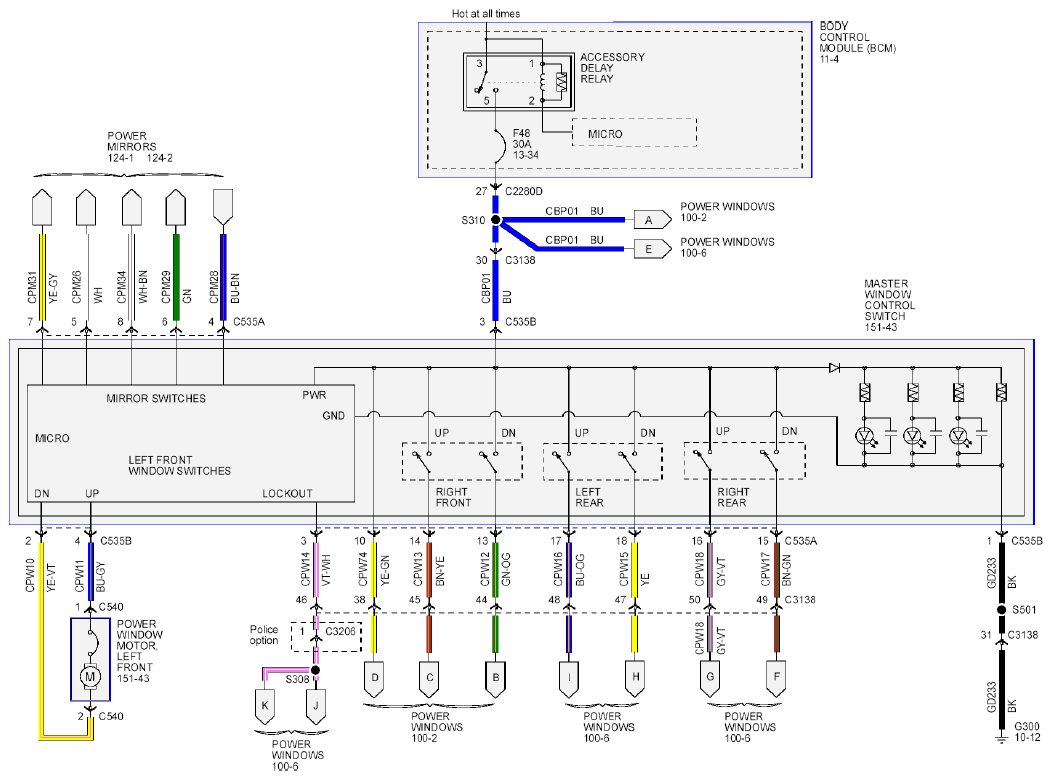

Fig 1: Power Windows (Base, Police) - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

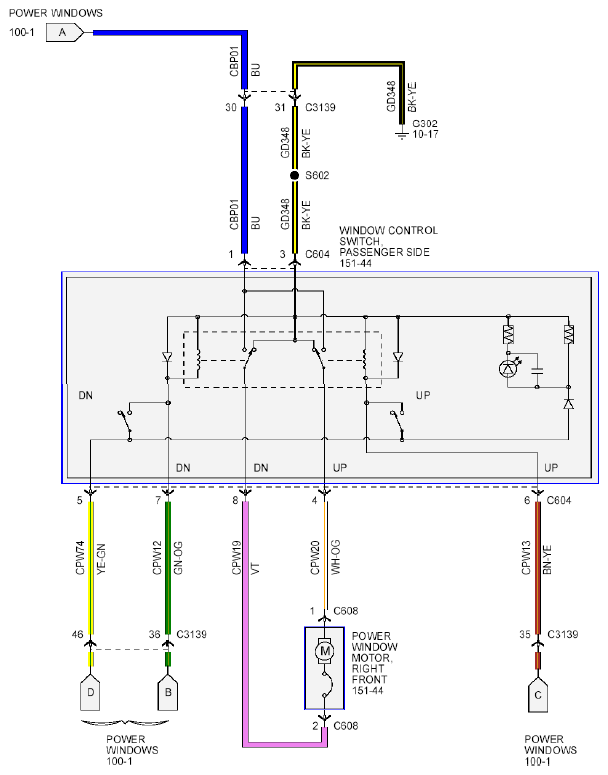

Fig 2: Power Windows (Base, Police) - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
