Remote Keyless Entry And Alarm
›
Without Memory
Without Memory

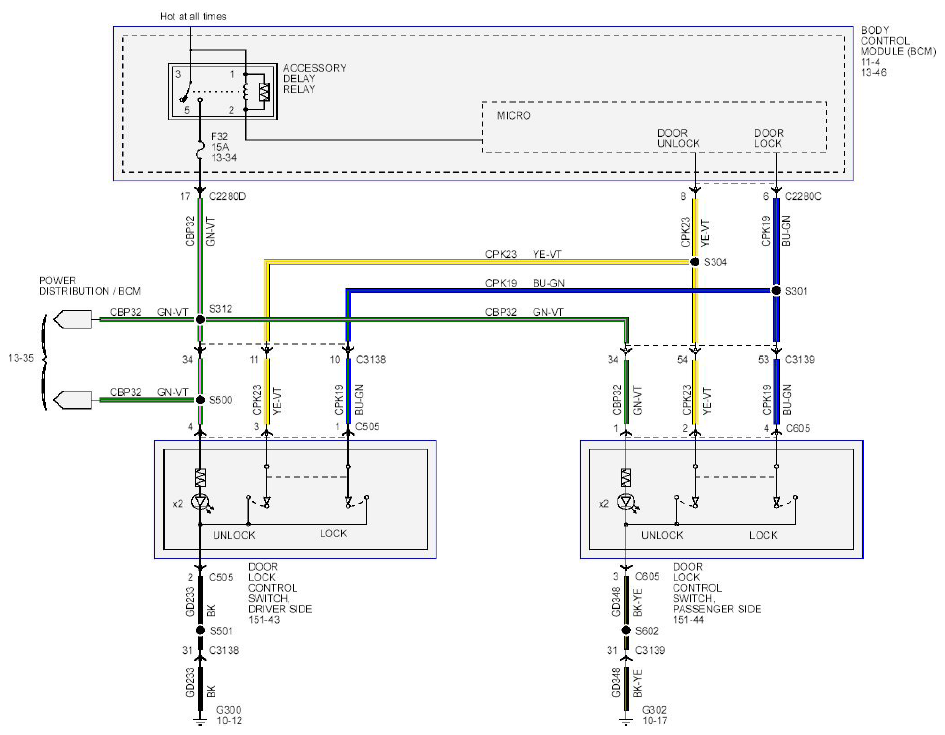

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (Without Memory)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
