Transmission Controls - 6F50/6F55: Notes

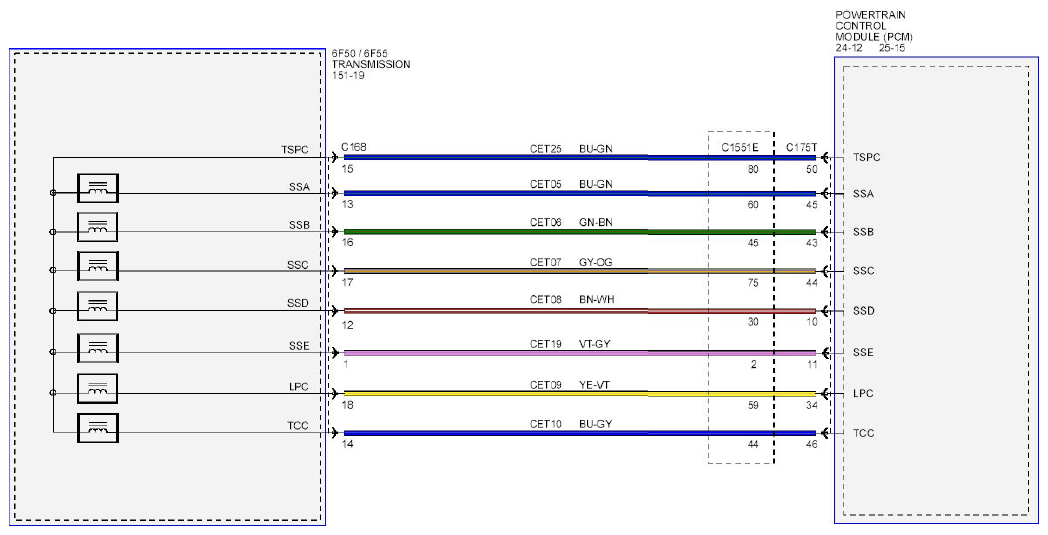

Fig 1: Transmission Controls (6F50/6F55) - Wiring Diagram (1 Of 2)

Courtesy of FORD MOTOR CO.

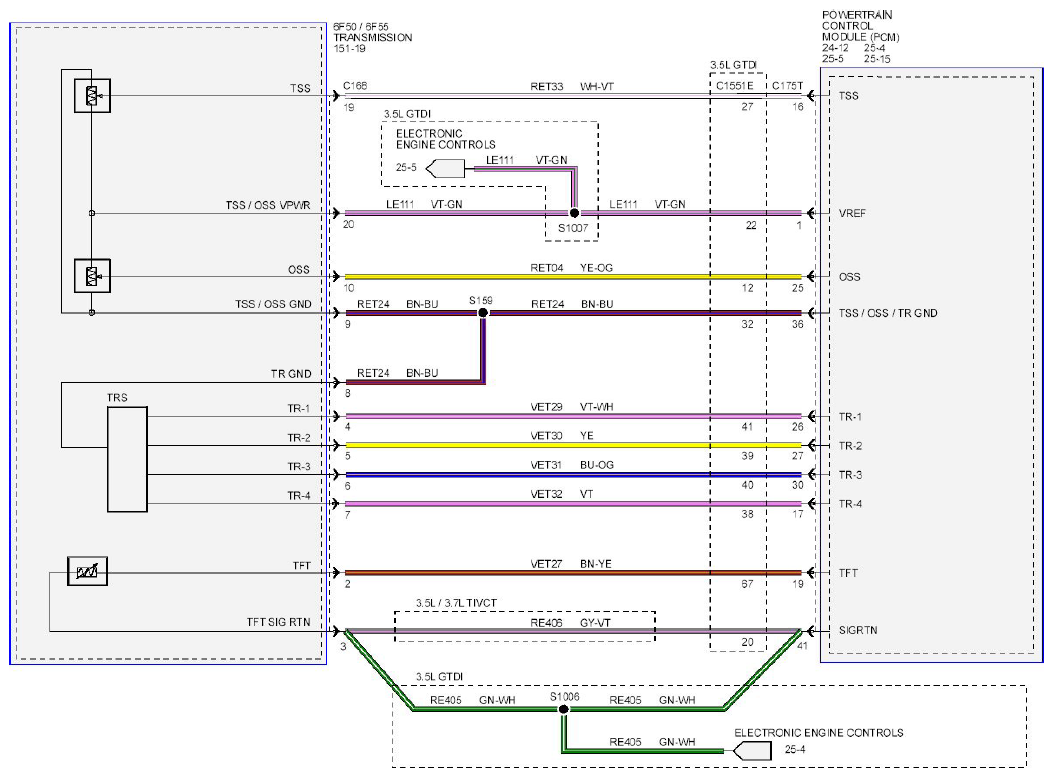

Fig 2: Transmission Controls (6F50/6F55) - Wiring Diagram (2 Of 2)

Courtesy of FORD MOTOR CO.
