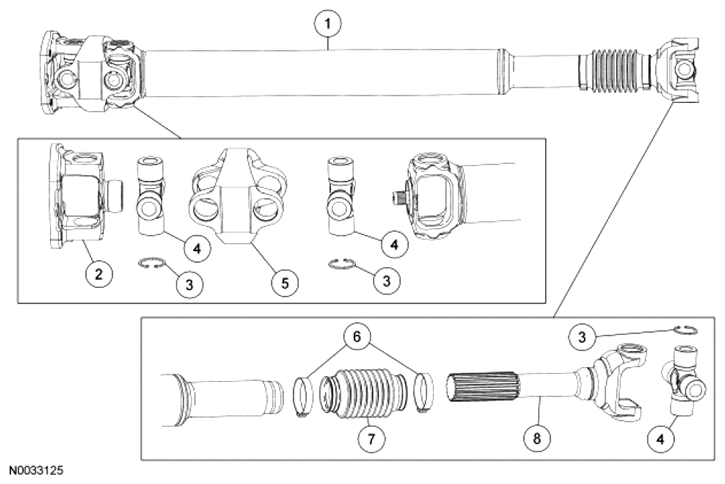

Driveshaft - Front
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
4A376 |
Front driveshaft |
| 2 |
- |
Flange yoke (double hooks) with spherical bearing assembly (part of 4A376) |
| 3 |
- |
Circlips (part of 4635) |
| 4 |
4635 |
U-joint assembly |
| 5 |
- |
Double yoke (part of 4A376) |
| 6 |
4K227 |
Clamps (also part of 4421) |
| 7 |
- |
Boot (part of 4421) |
| 8 |
4841 |
Yoke shaft |
