Component Location: Notes

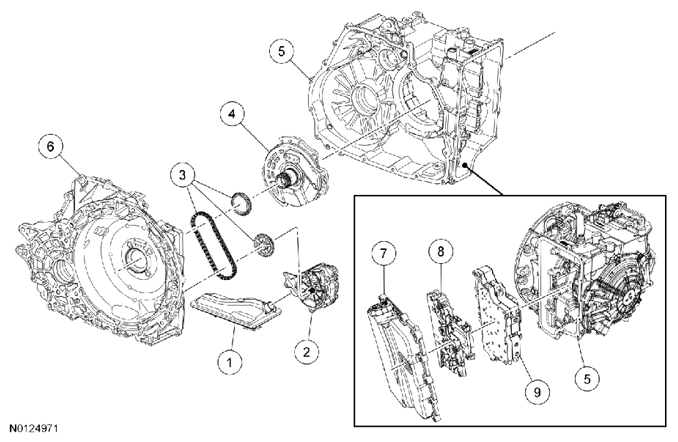

Fig 1: Hydraulic System Component Location

Courtesy of FORD MOTOR CO.

Item	Description
1	Transmission fluid filter assembly
2	Pump assembly
3	Chain and sprocket assembly
4	Stator support assembly
5	Transmission case
6	Torque converter housing
7	Main control cover assembly
8	Solenoid body
9	Main control valve body
