Automatic Transmission External Controls - Column Shift
›
Description And Operation
›
Automatic Transaxle/Transmission External Controls - Column Shift
›

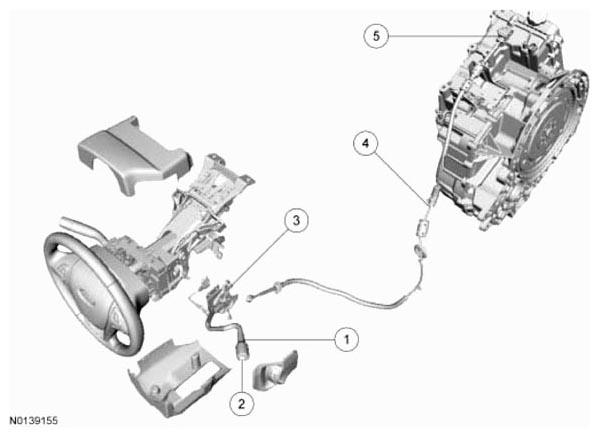

System Diagram
System Diagram
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
7A256
Selector lever
2
-
Low gear select switch (part of 7A256)
3
7210
Selector mechanism
4
7E395
Selector lever cable
5
-
Manual control lever
