Input Shaft - Inner: Disassembly

  1. Remove the inner input shaft needle bearing.
  2. Remove the inner input shaft needle bearing.
  3. Remove the inner input shaft roller bearing.
  4. Using the special tools and a press, remove the inner input shaft radial bearing.

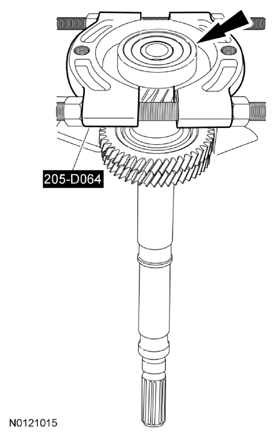

    Fig 1: Removing Inner Input Shaft Radial Bearing Using Special Tools And Press
    G08867302Courtesy of FORD MOTOR CO.
