Multifunction switch: Schematic

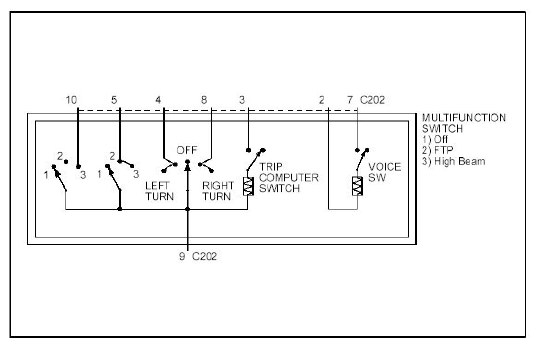

Fig 1: Multifunction Switch Schematic
G08666973Courtesy of FORD MOTOR CO.
