Transmission Control Module (TCM) Connector C1750A

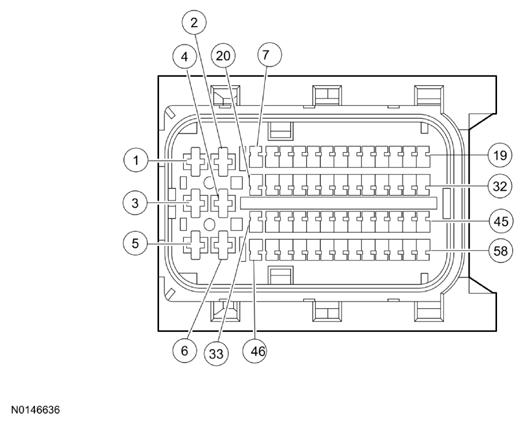

Fig 1: Transmission Control Module Connector C1750A Terminals

Courtesy of FORD MOTOR CO.

Item	Description
1	Power
2	Power
3	Ground
4	Ground
5	Ground
6	Ground
11	Overdrive (O/D) Cancel
18	Power
31	Ignition Run Start
34	Can Bus High Speed High
35	Can Bus High Speed Low
39	P/N Switch/Clutch 2
40	REVERSE Lamp
49	Brake Shift Interlock Actuator (BSIA)
