Transmission Range (TR) Sensor: Installation

Install the TR sensor and the 2 TR sensor bolts.
- Tighten to 10 Nm (89 lb-in).

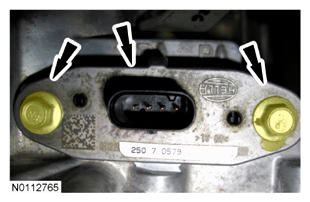

  Fig 1: Locating Transmission Range Sensor And Mounting Bolts
  Courtesy of FORD MOTOR CO.
Connect the TR sensor electrical connector.

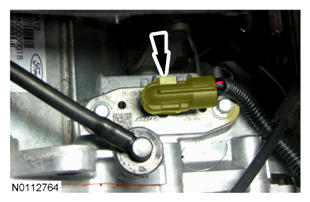

Fig 2: Locating Transmission Range Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Adjust the selector lever cable. For additional information, refer to AUTOMATIC DUAL CLUTCH TRANSAXLE (DCT) POWERSHIFT (DPS6) - EXTERNAL CONTROLS .
Re-calibrate the TR sensor. For additional information, refer to TRANSMISSION ADAPTIVE LEARNING .
Verify the vehicle starts in PARK and NEUTRAL only.
