Front Controls Interface Module (FCIM)

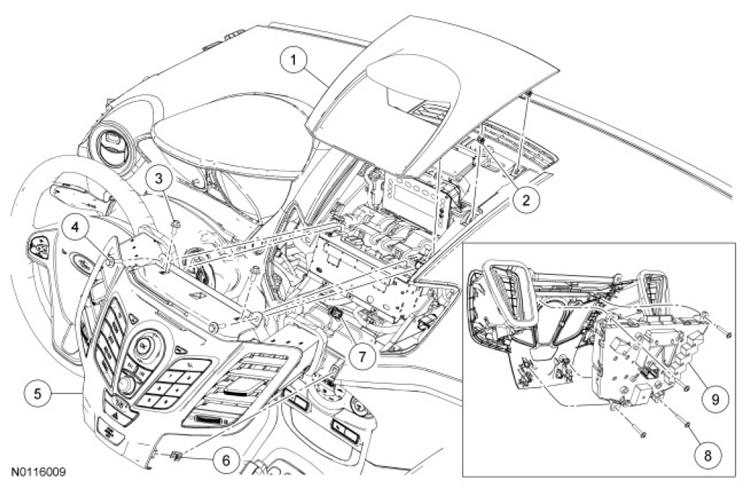

Fig 1: Identifying Front Controls Interface Module And Related Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	042A82	Upper finish panel
2	W714972	Upper finish panel clips (6 required)
3	W505142	FCIM finish panel screws (2 required)
4	W707628	FCIM finish panel screws (2 required)
5	18A802	Finish panel
6	-	Finish panel clip (2 required)
7	18812	FCIM electrical connector (part of 14K024)
8	W506962	FCIM screws (4 required)
9	18842	FCIM
