Module Communication Network

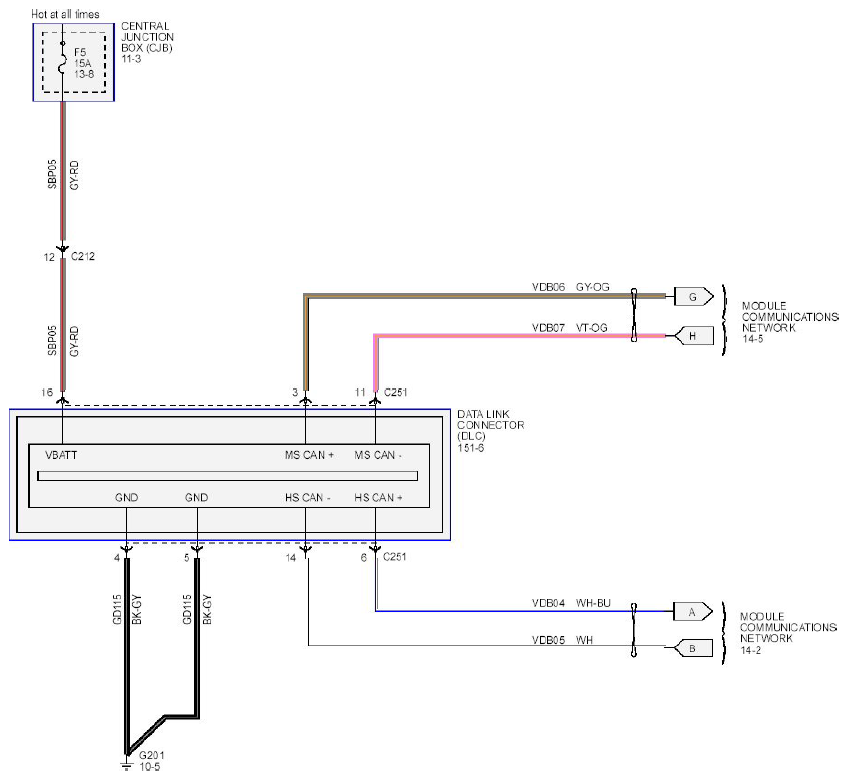

Fig 1: Module Communication Network Wiring Diagram (1 Of 6)

Courtesy of FORD MOTOR CO.

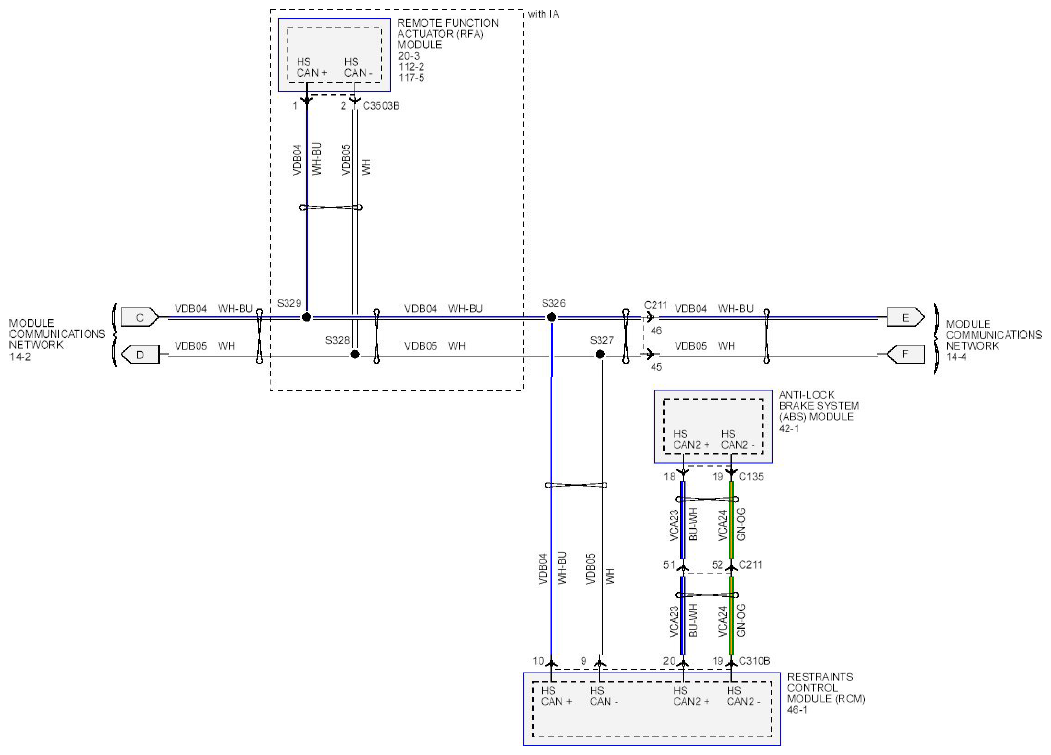

Fig 2: Module Communication Network Wiring Diagram (2 Of 6)

Courtesy of FORD MOTOR CO.

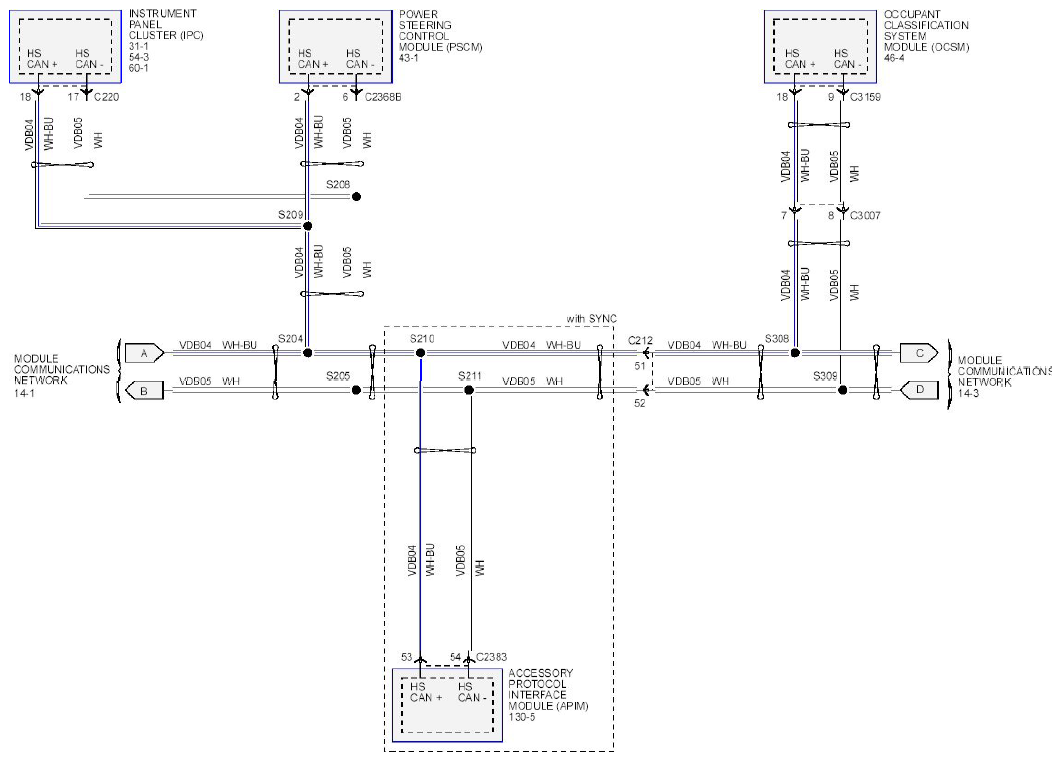

Fig 3: Module Communication Network Wiring Diagram (3 Of 6)

Courtesy of FORD MOTOR CO.

Fig 4: Module Communication Network Wiring Diagram (4 Of 6)

Courtesy of FORD MOTOR CO.

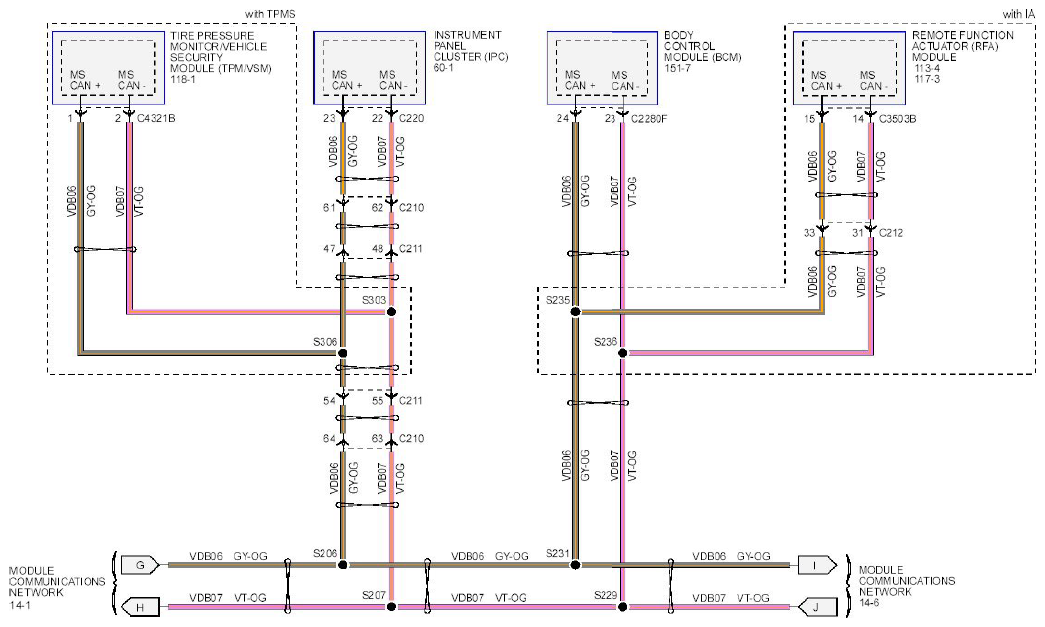

Fig 5: Module Communication Network Wiring Diagram (5 Of 6)

Courtesy of FORD MOTOR CO.

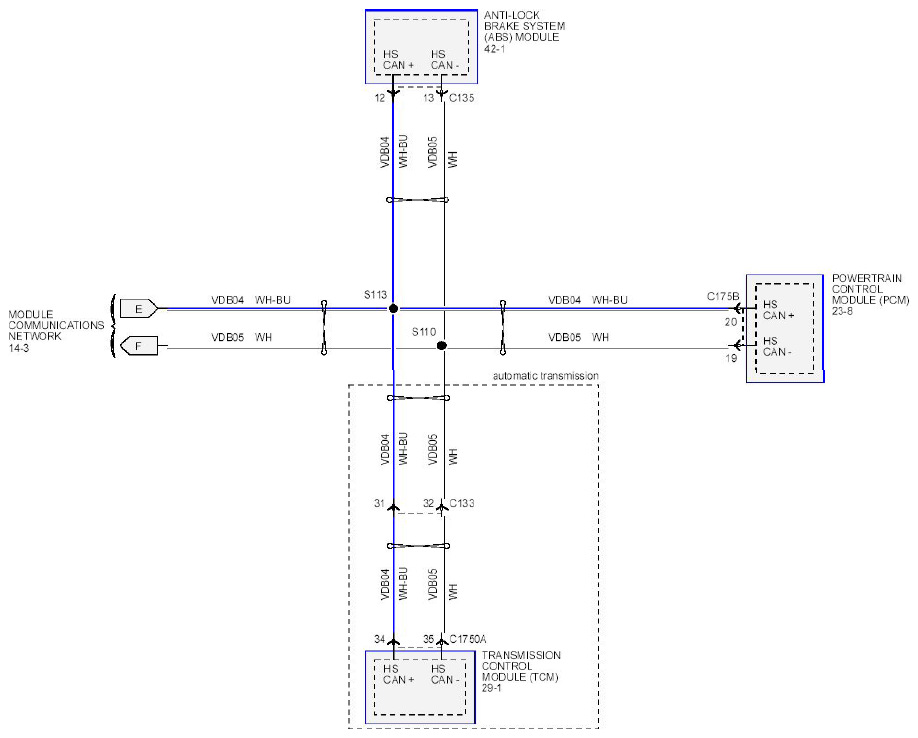

Fig 6: Module Communication Network Wiring Diagram (6 Of 6)

Courtesy of FORD MOTOR CO.
