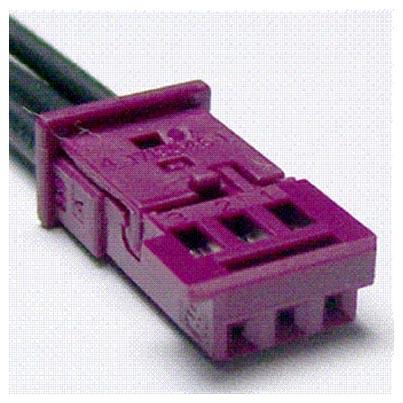

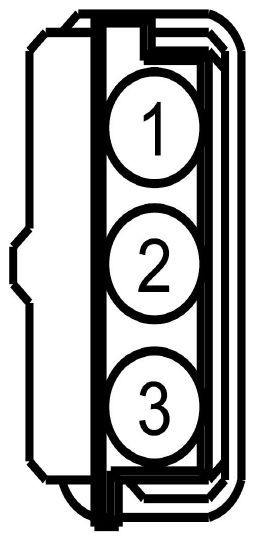

Remote Functions Receiver (RFR) Module Connector End View (C9026)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VDB10 (GY) | 22 | CONNECTOR - DIAGNOSTIC # K LINE ISO 9141 | |
| 2 | GD143 (BK-VT) | 22 | GROUND - PILLAR B LEFT | |
| 3 | SBP07 (WH-RD) | 22 | FUSE - 7 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1240 | Service Part Number: CU2Z-14S411-BA Gauge: 18 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
