Power Steering Control Module (PSCM) Connector End View (C2368B)

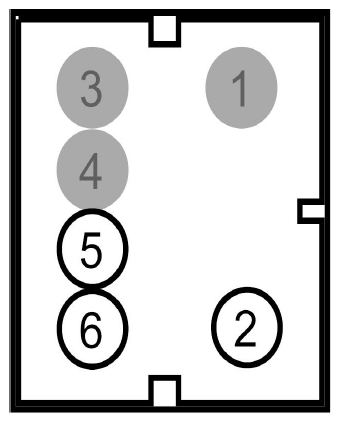

Fig 1: Identifying Power Steering Control Module (PSCM) Connector (C2368B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	*	*	Not Used
2	VDB04 (WH-BU)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH
3	*	*	Not Used
4	*	*	Not Used
5	CBP21 (BU-GY)	20	FUSE - 21 OR CIRCUIT BREAKER
6	VDB05 (WH)	20	CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW
