Input Shaft: Assembly

  1. Using a suitable tube, install the new bearing.

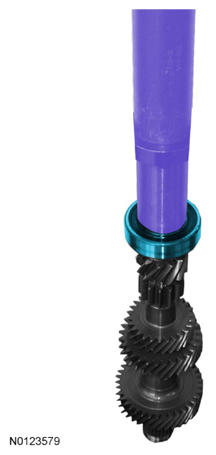

    Fig 1: Installing Bearing Using Tube
    G08867452Courtesy of FORD MOTOR CO.
  2. Using a suitable tube, install the new bearing.

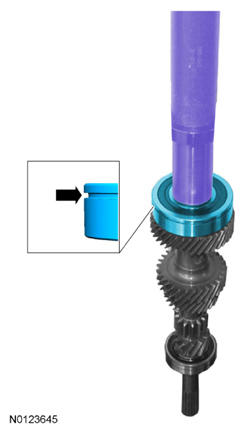

    Fig 2: Installing Bearing Using Tube
    G08867453Courtesy of FORD MOTOR CO.
