Roll Restrictor: Installation

NOTE: The bolts are different types, make sure the bolts are in the correct location.

Install the roll restrictor with roll restrictor bracket, roll restrictor bolts and the roll restrictor bracket bolts.

1 Tighten to 70 Nm (52 lb-ft).

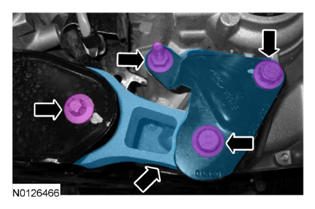

Fig 1: Locating Roll Restrictor And Bracket Mounting Bolts
Courtesy of FORD MOTOR CO.
Install the HO2S electrical connector bracket to the roll restrictor bracket and install the HO2S electrical connector bracket nut.
- Tighten to 25 Nm (18 lb-ft).

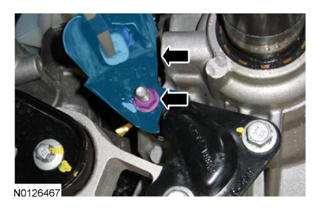

  Fig 2: Locating Heated Oxygen Sensor Electrical Connector Bracket And Nut
  Courtesy of FORD MOTOR CO.
