Exploded View: Disassembly

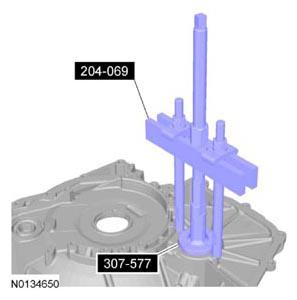

  1. Special Tool(s): Remover/Installer, Front Wheel Hub 204-069, Transfer Gear Bearing Race Remover 307-577
    G08627541
  2. G08627542
  3. Punch a hole in the fluid dam. Center punch.
    G08412963
  4. General Equipment: Dent Puller
    G08412964
  5. Special Tool(s): Differential Bearing Cup Remover 307-586

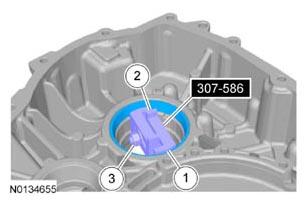

    1. Position the Differential Bearing Cup Remover 307-586 in the torque converter housing with the tabs on the Differential Bearing Cup Remover 307-586 aligned with the slots in the torque converter housing.
    2. Expand the Differential Bearing Cup Remover 307-586 by hand.
    3. While holding the Differential Bearing Cup Remover 307-586 in the expanded position with the tabs in the slots of the torque converter housing, tighten the nut.
      G08627545
  6. General Equipment: Shop Press
    G08412966
  7. G08627547
