Exploded View: Disassembly

  1. Inspect the transfer shaft bearings for damage or excessive wear. Install new if necessary. Visual check.
    G08412993

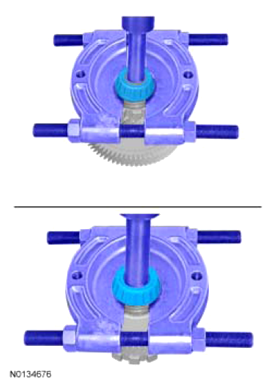

  2. Special Tool(s): Puller, Bearing 205-D064 (D84L-1123-A)

    General Equipment: Shop Press

    G08412994
  3. Inspect the transfer shaft assembly for damage. Visual check.
    1. Inspect the park pawl wheel for damage and install new, if necessary.
    2. Inspect the transfer shaft and transfer shaft input gear for damage and install new, if necessary.
      G08412995
