Cruise Control Module (CCM): Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

WARNING: Before beginning any service procedure, refer to Safety Warnings in GENERAL INFORMATION -- FUSION . Failure to follow this instruction may result in serious personal injury.

Refer to: HEALTH AND SAFETY PRECAUTIONS .
Remove the front bumper cover.
Refer to: FRONT BUMPER COVER .

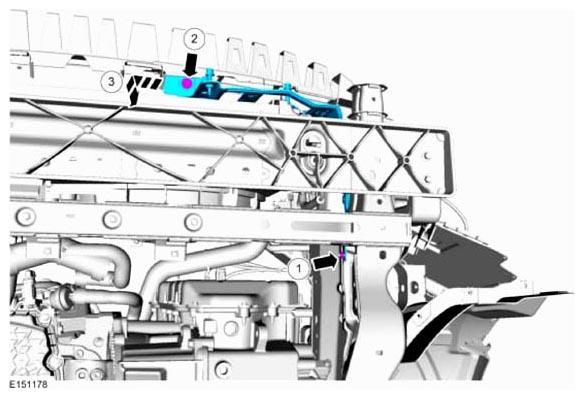

Remove the active grille shutters.
Torque : 27 Nm
Torque : 9 Nm
