Section 4 (Manual Transaxle): Installation: Transmission

WARNING: This page is about a different variant/trim than selected.

SPECIAL TOOLS/GENERAL EQUIPMENT

	303-1502 Lifting Device Engine
	303-290B-18 Adapter for 303-290B
	303-F072 Support Bar, Engine
Transmission Jack
Retaining Strap
Wooden Block

MATERIALS SPECIFICATIONS

Name	Specification
High Temperature 4x4 Front Axle and Wheel Bearing Grease XG-11	WSS-M1C267-A1
Threadlock 262 TA-26	WSK-M2G351-A6

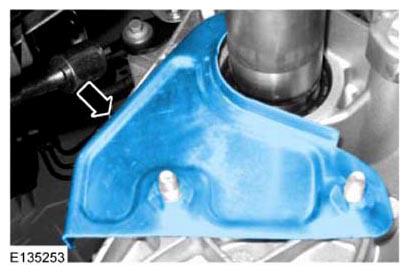

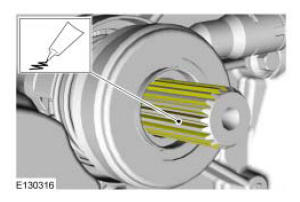

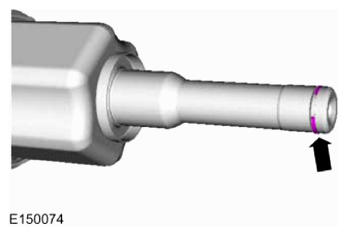

Material : High Temperature 4x4 Front Axle and Wheel Bearing Grease/XG-11 (WSS-M1C267-A1)
Torque : 48 Nm

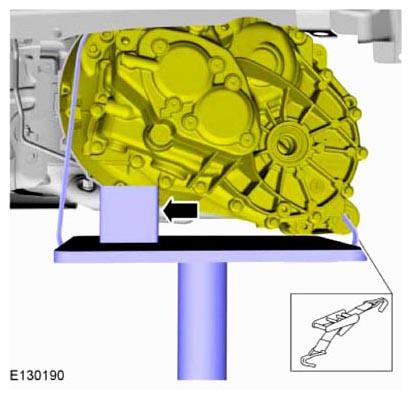

Remove the following items:

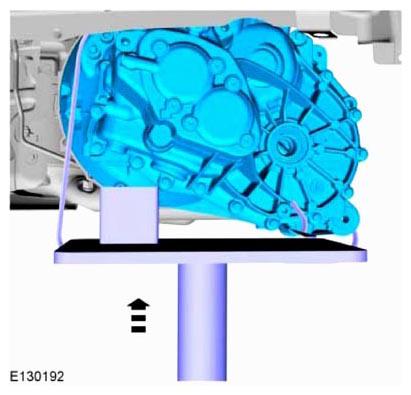

- General Equipment : Transmission Jack
- General Equipment : Wooden Block
- General Equipment : Retaining Strap

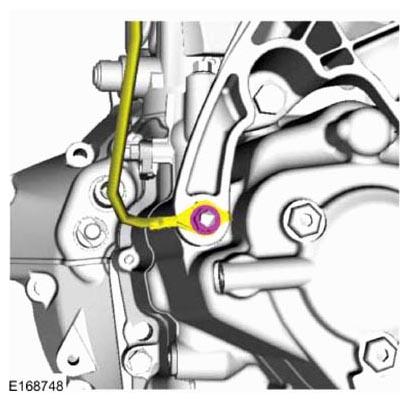

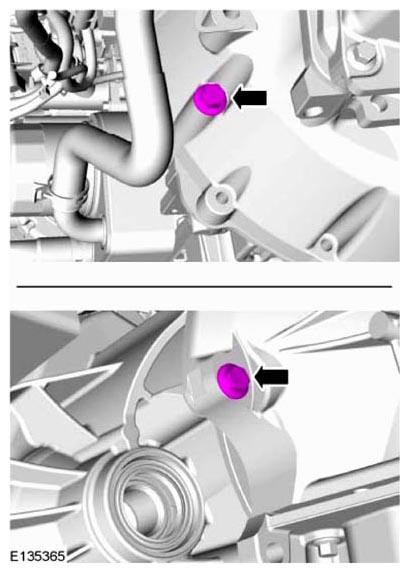

Torque : 80 Nm
Torque : 25 Nm

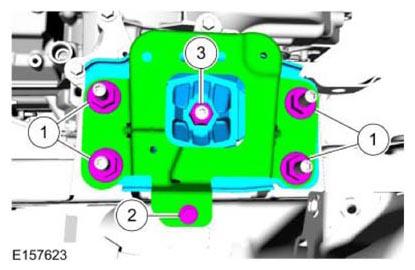

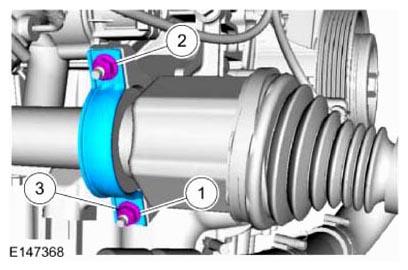

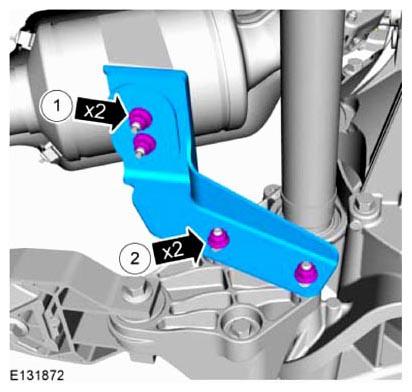

1. Material : Threadlock 262/TA-26 (WSK-M2G351-A6)
  Torque : 80 Nm
2. Torque : 25 Nm
3. Material : Threadlock 262/TA-26 (WSK-M2G351-A6)
  Torque : 133 Nm
Torque : 24 Nm
Torque : 48 Nm

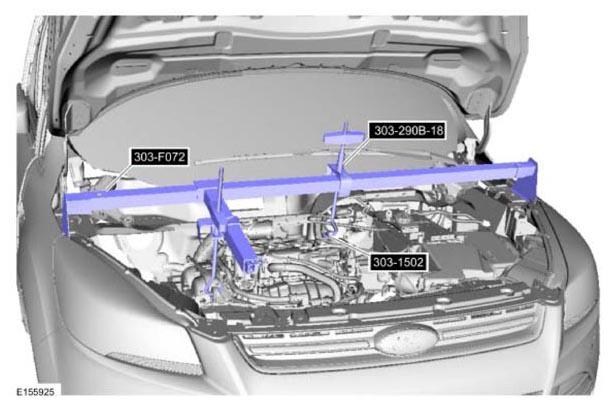

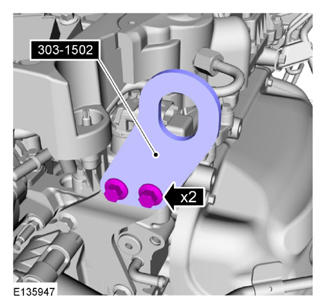

Special Tool(s) : 303-F072 Support Bar, Engine , 303-290B-18 Adapter for 303-290B , 303-1502 Lifting Device Engine

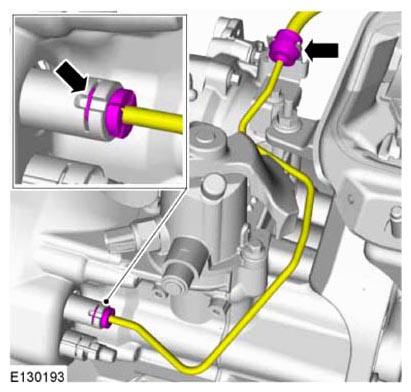

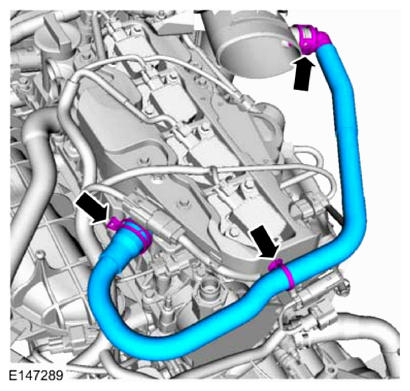

Refer to: QUICK RELEASE COUPLING .

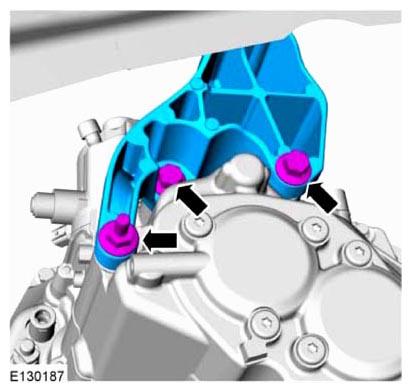

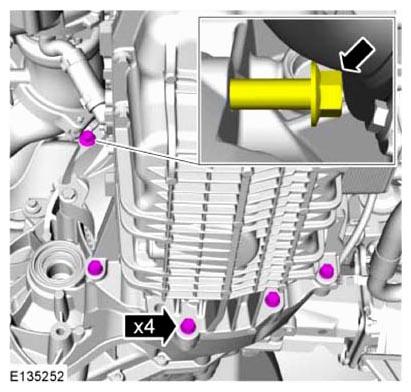

NOTE: Note the different lengths of the bolts.

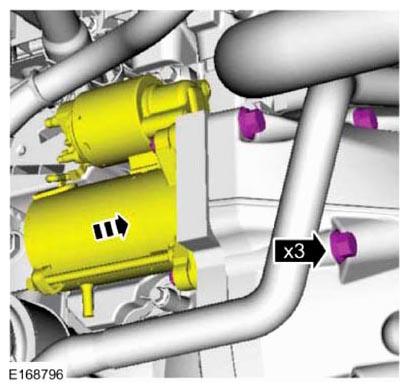

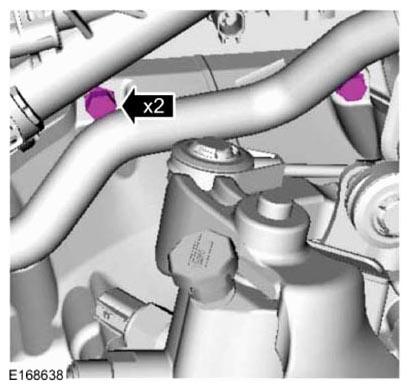

Torque : 48 Nm

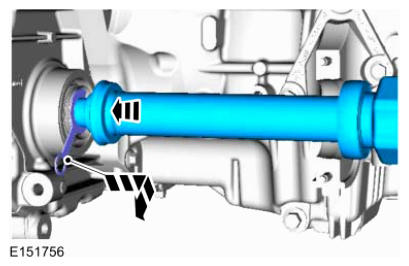

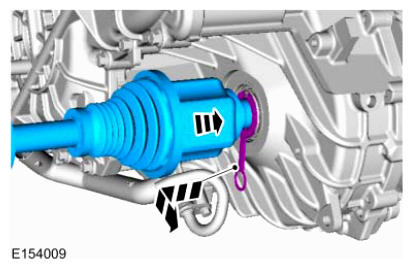

NOTE: Do not fully install shaft at this time.

Using part: AA5P-4N406-A.

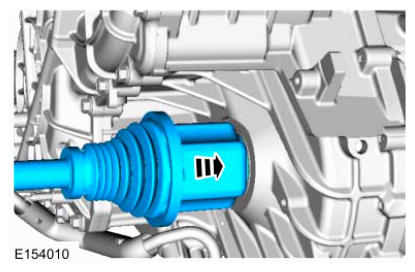

NOTE: Do not fully install the shaft at this time.

Using part: 4W1W-4N206-A.
NOTE: Insert the intermediate shaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.
1. Torque :
  Stage 1: Tighten lower nut to 5 Nm

  Stage 2: Tighten upper nut to 25 Nm

  Stage 3: Tighten lower nut to 25 Nm
1. Torque : 5 Nm
2. Torque : 20 Nm
Refer to: FRONT SUBFRAME .
If equipped.

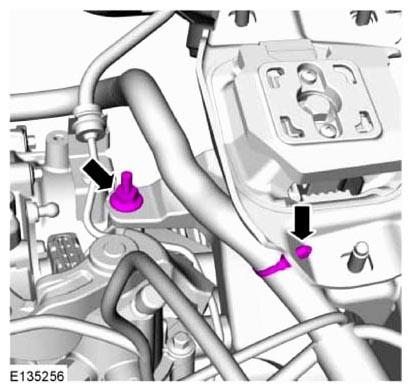

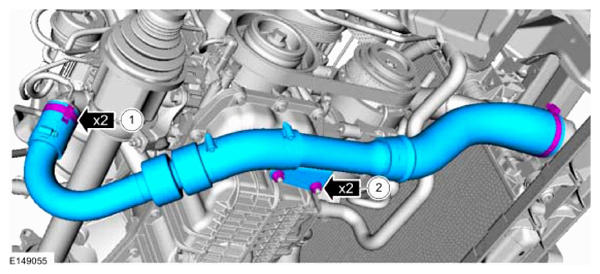

1. Torque : 25 Nm
2. Torque : 25 Nm
Refer to: TRANSMISSION FLUID LEVEL CHECK .

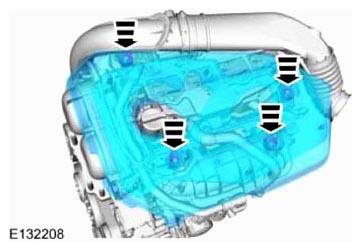

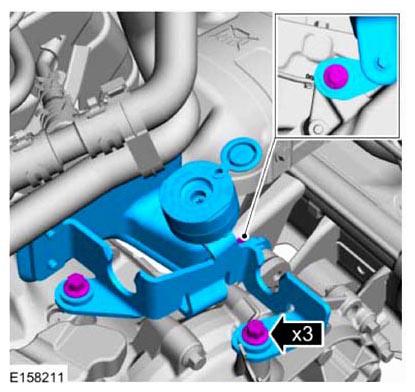

NOTE: Note the different lengths of the bolts.

Torque : 48 Nm
Torque : 48 Nm
Torque : 25 Nm
Install the following items:

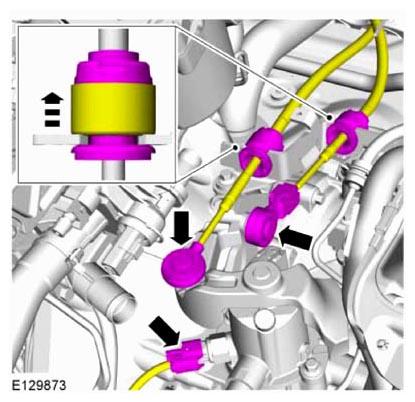

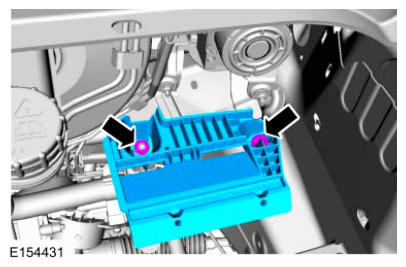

Refer to: BATTERY TRAY .
Refer to: GEARSHIFT CABLE ADJUSTMENT .
Refer to: CLUTCH SYSTEM BLEEDING .
If equipped.
After completing the repairs, perform the Misfire Monitor Neutral Profile Correction procedure.
