Repair procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Remove the knee airbag module.

    (Refer to "KNEE AIRBAG (KAB) MODULE ")

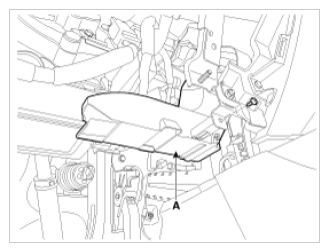

  4. Remove the driver side shower duct (A) after loosening the screw.
    Fig 1: Identifying Driver Side Shower Duct
    G09887940Courtesy of HYUNDAI MOTOR AMERICA

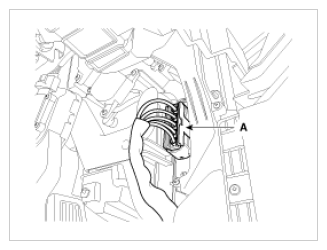

  5. Disconnect the PTC heater connector (A).
    Fig 2: Identifying PTC Heater Connector
    G09887941Courtesy of HYUNDAI MOTOR AMERICA

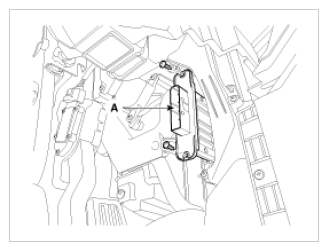

  6. Remove the PTC heater core (A) after loosening the PTC heater mounting screws.
    Fig 3: Identifying PTC Heater Core
    G09887942Courtesy of HYUNDAI MOTOR AMERICA
  7. Install in the reverse order of removal.
