Disassembly and Assembly of Subassemblies: Differential: Assembly

WARNING: This page is about a different variant/trim than selected.

NOTE: Use vise jaw protectors.

Clamp the differential in a vise.
NOTE: Make sure that the mating faces are clean and free of foreign material.

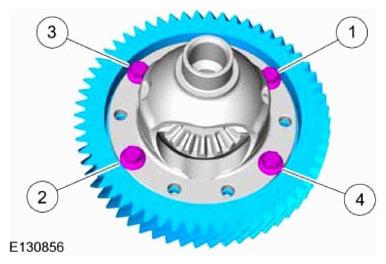

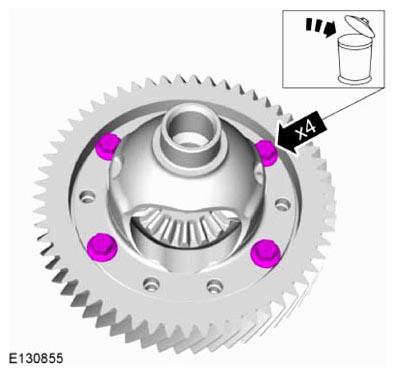

- Install the four bolts saved during disassembly.
- Tighten each bolt 1 turn at a time in the sequence shown in illustration.
  Torque : 50 Nm

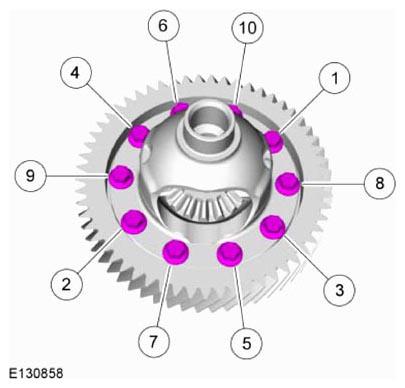

Tighten each bolt 1 turn at a time.
Torque :

Stage 1: 50 Nm

Stage 2: 90°

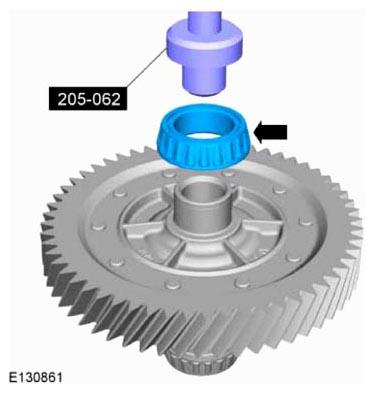

The roller bearing must not be lubricated.
Special Tool(s) : 205-062 Installer, Differential Bearing

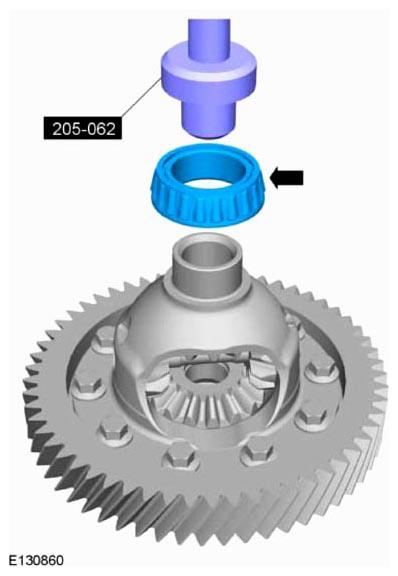

The roller bearing must not be lubricated.
Special Tool(s) : 205-062 Installer, Differential Bearing
